SANDVIK Style Boring Bars - Min bore .362-1.280 - SCLCR Bars using CCMT (80° Diamond) Inserts

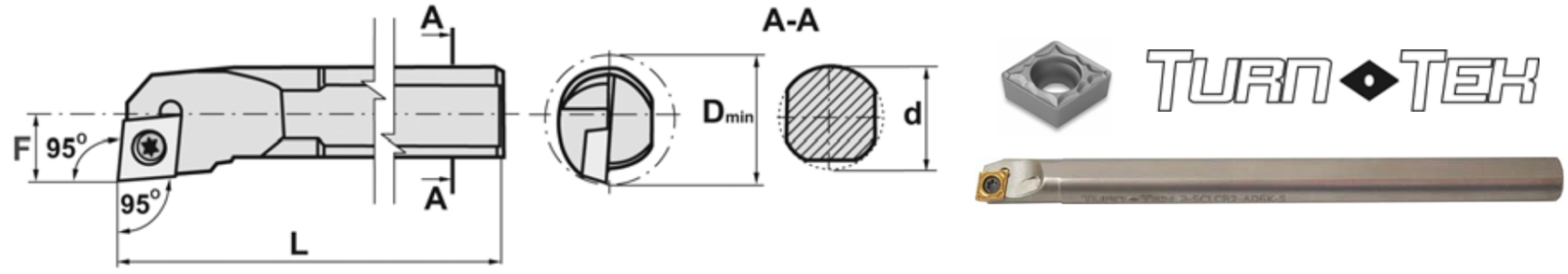

SCLCR BORING BARS

Industry standard SCLCR type
Uses CCMT or CCGT type inserts
Available in solid steel or coolant thru
Shanks have locating flats for easy set up

Using CCMT/CCGT Inserts

Prices are pulled from our database in real time. Press Add button to see product price.

Insert Series	Industry Reference	Shank Dia d	Min Bore D	F Dim	OAL L	Right Hand Part Number	Left Hand Part Number
SOLID
CC_T - 21.5_	05-SCLCR/L-2	0.313	0.354	0.177	4.00	B-SCLCR2-S05H-S	B-SCLCL2-S05H-S
	06-SCLCR/L-2	0.375	0.406	0.203	5.00	B-SCLCR2-S06K-S	B-SCLCL2-S06K-S
	08-SCLCR/L-2	0.500	0.562	0.281	6.00	B-SCLCR2-S08M-S	B-SCLCL2-S08M-S
	10-SCLCR/L-2	0.625	0.812	0.406	7.00	B-SCLCR2-S10Q-S	B-SCLCL2-S10Q-S
CC_T - 32.5_	08-SCLCR/L-3	0.500	0.688	0.344	6.00	B-SCLCR3-S08M-S	B-SCLCL3-S08M-S
	10-SCLCR/L-3	0.625	0.812	0.406	7.00	B-SCLCR3-S10Q-S	B-SCLCL3-S10Q-S
	12-SCLCR/L-3	0.750	1.000	0.500	7.00	B-SCLCR3-S12Q-S	B-SCLCL3-S12Q-S
	16-SCLCR/L-3	1.000	1.250	0.625	8.00	B-SCLCR3-S16R-S	B-SCLCL3-S16R-S
COOLANT-THRU
CC_T - 21.5_	A04-SCLCR/L-2	0.250	0.330	0.177	4.00	B-SCLCR2-A04F-S	B-SCLCL2-A04F-S
	A05-SCLCR/L-2	0.313	0.354	0.177	4.00	B-SCLCR2-A05K-S	B-SCLCL2-A05K-S
	A06-SCLCR/L-2	0.375	0.406	0.203	5.00	B-SCLCR2-A06K-S	B-SCLCL2-A06K-S
	A08-SCLCR/L-2	0.500	0.562	0.281	6.00	B-SCLCR2-A08M-S	B-SCLCL2-A08M-S
	A08-SCLCR/L-2	0.625	0.812	0.406	7.00	B-SCLCR2-A10Q-S	B-SCLCL2-A10Q-S
CC_T - 32.5_	A08-SCLCR/L-3	0.500	0.688	0.344	6.00	B-SCLCR3-A08M-S	B-SCLCL3-A08M-S
	A10-SCLCR/L-3	0.625	0.812	0.406	7.00	B-SCLCR3-A10Q-S	B-SCLCL3-A10Q-S
	A12-SCLCR/L-3	0.750	1.000	0.500	7.00	B-SCLCR3-A12Q-S	B-SCLCL3-A12Q-S
	A16-SCLCR/L-3	1.000	1.250	0.625	8.00	B-SCLCR3-A16R-S	B-SCLCL3-A16R-S

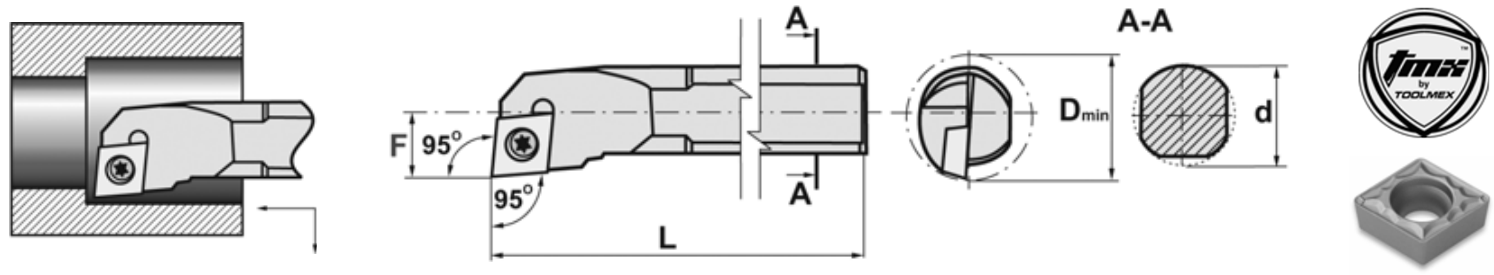

SCLCR/L BORING BARS

Industry standard SCLCR/L type
Steel shank
Uses CCMT or CCGT inserts
Shanks have locating flats
3° side & end cutting edge angle

Using CCMT/CCGT Inserts

Prices are pulled from our database in real time. Press Add button to see product price.

								SPARE PARTS
Insert Series	Style	Shank Size d	Min Bore D	OAL L	F	Right Hand Part Number	Left Hand Part Number	Screw Part Number	Hex/Torx Key Part Number
CC_T-21.5_	SI-SCLCR/L4-2	.312	.354	4	.1875	BI-6870-042R	BI-6870-042L	BI-6998-2506	BI-6998-007
	SI-SCLCR/L6-2	.375	.468	6	.250	BI-6870-062R	BI-6870-062L
	SI-SCLCR/L8-2	.500	.560	7	.290	BI-6870-082R	BI-6870-082L
	SI-SCLCR/L10-2	.625	.810	8	.405	BI-6870-085R	BI-6870-085L
CC_T-32.5_	SI-SCLCR/L8-3	.500	.625	7	.312	BI-6870-093R	BI-6870-093L	BI-6998-4008T	BI-6998-015
	SI-SCLCR/L10-3	.625	.812	8	.406	BI-6870-103R	BI-6870-103L
	SI-SCLCR/L12-3	.750	1	10	.500	BI-6870-123R	BI-6870-123L
	SI-SCLCR/L16-3	1	1.120	12	.6094	BI-6870-163R	BI-6870-163L

SCLCR BORING BARS
Heavy Metal & Carbide

Industry standard SCLCR type
Uses CCMT or CCGT type inserts
Shanks have locating flats for easy set up
Made in the USA

Prices are pulled from our database in real time. Press Add button to see product price.

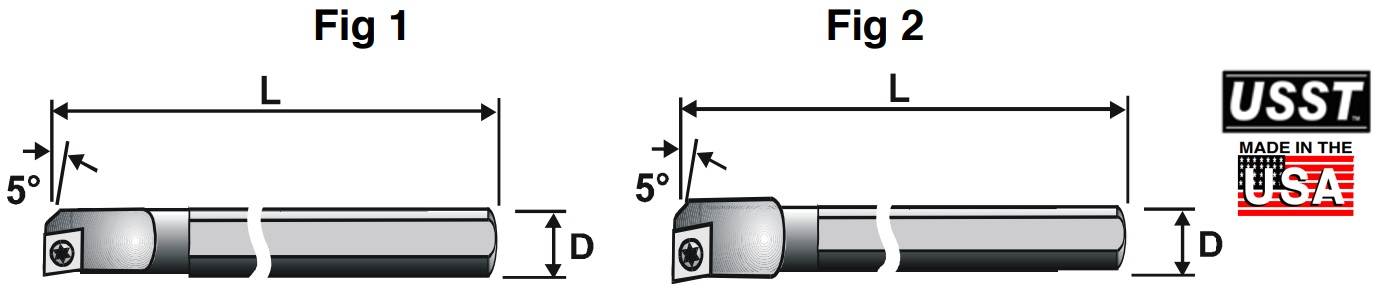

				Heavy Metal-6xD			Carbide Shank-8xD
Insert	Industry Reference	Shank “D”	Fig #	Min Bore	L	Part Number	Min Bore	L	Part Number	Screw	Wrench
CC_ _ 21.5_	_05-SCLCR-2	0.312	2	0.362	4.0	BBS-3000R	0.438	6.0	BBS-5000R	SC-76	TX-207
	_06-SCLCR-2	0.375	1	0.425	4.0	BBS-3010R	0.500	6.0	BBS-5010R
	_08-SCLCR-2	0.500	1	0.550	6.0	BBS-3020R	0.630	8.0	BBS-5020R
	_10-SCLCR-2	0.625	1	0.675	6.0	BBS-3040R	0.810	8.0	BBS-5040R	SC-76	TX-207
CC_ _ 32.5_	_08-SCLCR-3	0.500	1	-	-	-	0.630	8.0	BBS-5030R	SC-77	TX-215
	_10-SCLCR-3	0.625	1	0.675	6.0	BBS-3050R	0.810	8.0	BBS-5050R	SC-77	TX-215
	_12-SCLCR-3	0.750	1	0.800	8.0	BBS-3060R	1.000	10.0	BBS-5060R
	_16-SCLCR-3	1.000	1	1.050	8.0	BBS-3070R	1.280	12.0	BBS-5070R
