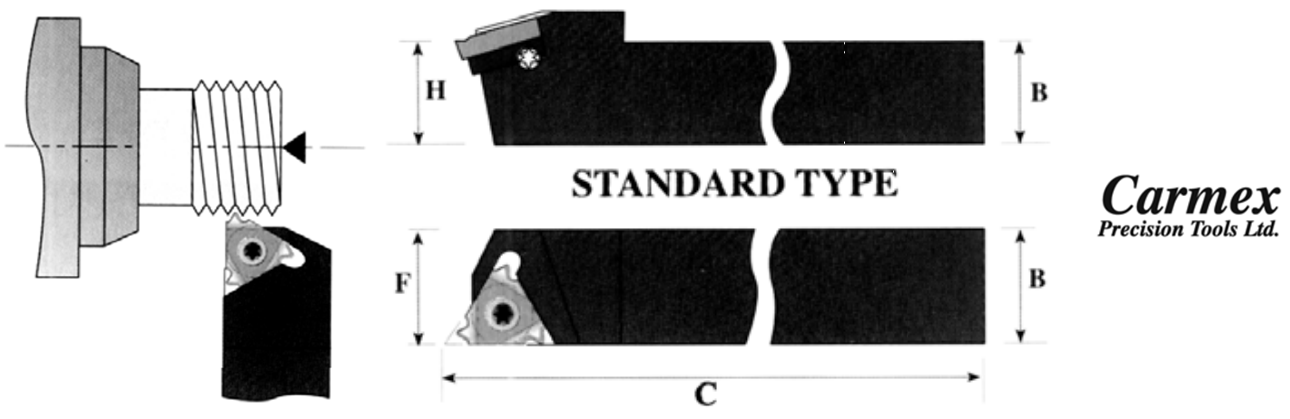

TOOLHOLDERS FOR EXTERNAL LAYDOWN THREAD TURNING
LAYDOWN THREAD TURNING Prices are pulled from our database in real time. Press Add button to see product price.
| EXTERNAL | |||||
| HOLDER SERIES |
B=H in |
C in OAL |
F in |
Right Handed Part Number |
Left Handed Part Number |
| 11 | 0.380 | 4.000 | 0.430 | T-CMSER0375H11 | T-CMSEL0375H11 |
| 16 | 0.380 | 2.500 | 0.630 | T-CMSER0375D16 | T-CMSEL0375D16 |
| 0.500 | 3.250 | 0.630 | T-CMSER0500F16 | T-CMSEL0500F16 | |
| 0.630 | 4.000 | 0.630 | T-CMSER0625H16 | T-CMSEL0625H16 | |
| 0.750 | 5.000 | 0.750 | T-CMSER0750K16 | T-CMSEL0750K16 | |
| 1.000 | 6.000 | 1.000 | T-CMSER1000M16 | T-CMSEL1000M16 | |
| 1.250 | 7.000 | 1.250 | T-CMSER1250P16 | T-CMSEL1250P16 | |
| 22 | 1.000 | 6.000 | 1.000 | T-CMSER1000M22 | T-CMSEL1000M22 |
| 1.250 | 7.000 | 1.250 | T-CMSER1250P22 | T-CMSEL1250P22 | |
| 1.500 | 8.000 | 1.500 | T-CMSER1500R22 | T-CMSEL1500R22 | |
| 22U | 1.000 | 6.000 | 1.100 | T-CMSER1000M22U | T-CMSEL1000M22U |
| 1.250 | 7.000 | 1.250 | T-CMSER1250P22U | T-CMSEL1250P22U | |
| 27 | 1.000 | 6.000 | 1.250 | T-CMSER1000M27 | T-CMSEL1000M27 |
| 1.250 | 7.000 | 1.250 | T-CMSER1250P27 | T-CMSEL1250P27 | |
| 27U | 1.000 | 6.000 | 1.250 | T-CMSER1000M27U | T-CMSEL1000M27U |
| 1.250 | 7.000 | 1.250 | T-CMSER1250P27U | T-CMSEL1250P27U | |
| 1.500 | 8.000 | 1.500 | T-CMSER1500R27U | T-CMSEL1500R27U | |
| 33U | 1.250 | 7.000 | 1.450 | T-CMSER1250P33U | T-CMSEL1250P33U |
| Important Notes: Use External Right Handed Holders with External Right Handed Laydown Inserts of the same Insert Series only. Similarly for Left Handed Holders and Inserts. Do not interchange insert series or insert hands. | |||||
