60° Internal Threading Tools

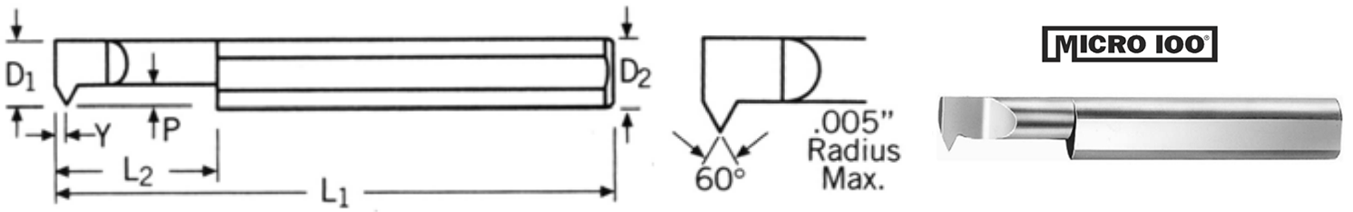

60° INTERNAL THREADING TOOLS
N/C GENERATION
Shank Diameter -.0001 to - .0003”
Minimum Hole Dia. +.000 - .005
Depth +.050 - .000”
Overall Length ±1/64” Prices are pulled from our database in real time. Press Add button to see product price.

Min. Hole Dia. D1	Shank Dia. D2	OAL L1	Proj. P	Offset Point Y	Max. Hole Depth L2	Right Hand Part Number	Left Hand Part Number
.080	1/8	1-1/2	.020	.012	0.250	MI-IT080250 Add	MI-ITL080250 Add
					0.350	MI-IT080350 Add	MI-ITL080350 Add
					0.500	MI-IT080500 Add	MI-ITL080500 Add
.100	1/8	1-1/2	.025	.014	0.250	MI-IT100250 Add	MI-ITL100250 Add
					0.350	MI-IT100350 Add	MI-ITL100350 Add
					0.500	MI-IT100500 Add	MI-ITL100500 Add
					0.600	MI-IT100600 Add	MI-ITL100600 Add
.120	3/16	2	.030	.017	0.250	MI-IT120250 Add	MI-ITL120250 Add
					0.400	MI-IT120400 Add	MI-ITL120400 Add
					0.500	MI-IT120500 Add	MI-ITL120500 Add
					0.600	MI-IT120600 Add	MI-ITL120600 Add
					0.750	MI-IT120750 Add	MI-ITL120750 Add
.140	3/16	2	.035	.020	0.250	MI-IT140250 Add	MI-ITL140250 Add
					0.400	MI-IT140400 Add	MI-ITL140400 Add
					0.500	MI-IT140500 Add	MI-ITL140500 Add
					0.750	MI-IT140750 Add	MI-ITL140750 Add
.160	3/16	2	.040	.023	0.250	MI-IT160250 Add	MI-ITL160250 Add
					0.400	MI-IT160400 Add	MI-ITL160400 Add
					0.500	MI-IT160500 Add	MI-ITL160500 Add
					0.750	MI-IT160750 Add	MI-ITL160750 Add
					1.000	MI-IT1601000 Add	MI-ITL1601000 Add
.180	1/4	2-1/2	.040	.023	0.350	MI-IT180350 Add	MI-ITL180350 Add
					0.500	MI-IT180500 Add	MI-ITL180500 Add
					0.750	MI-IT180750 Add	MI-ITL180750 Add
					1.000	MI-IT1801000 Add	MI-ITL1801000 Add
.200	1/4	2-1/2	.045	.026	0.400	MI-IT200400 Add	MI-ITL200400 Add
					0.600	MI-IT200600 Add	MI-ITL200600 Add
					0.750	MI-IT200750 Add	MI-ITL200750 Add
					1.000	MI-IT2001000 Add	MI-ITL2001000 Add
.230	5/16	2-1/2	.055	.032	0.400	MI-IT230400 Add	MI-ITL230400 Add
					0.600	MI-IT230600 Add	MI-ITL230600 Add
					0.750	MI-IT230750 Add	MI-ITL230750 Add
					1.000	MI-IT2301000 Add	MI-ITL2301000 Add
					1.500	MI-IT2301500 Add	MI-ITL2301500 Add
.290	5/16	2-1/2	.070	.040	0.500	MI-IT290500 Add	MI-ITL290500 Add
					0.750	MI-IT290750 Add	MI-ITL290750 Add
					1.000	MI-IT2901000 Add	MI-ITL2901000 Add
					1.250	MI-IT2901250 Add	MI-ITL2901250 Add
					1.750	MI-IT2901750 Add	MI-ITL2901750 Add
.320	3/8	2-1/2	.075	.043	0.500	MI-IT320500 Add	MI-ITL320500 Add
					0.750	MI-IT320750 Add	MI-ITL320750 Add
					1.000	MI-IT3201000 Add	MI-ITL3201000 Add
					1.250	MI-IT3201250 Add	MI-ITL3201250 Add
					1.800	MI-IT3201800 Add	MI-ITL3201800 Add
.360	3/8	2-1/2	.085	.049	0.500	MI-IT360500 Add	MI-ITL360500 Add
					0.750	MI-IT360750 Add	MI-ITL360750 Add
					1.000	MI-IT3601000 Add	MI-ITL3601000 Add
					1.250	MI-IT3601250 Add	MI-ITL3601250 Add
					1.800	MI-IT3601800 Add	MI-ITL3601800 Add
.490	1/2	3	.120	.069	0.750	MI-IT490750 Add	MI-ITL490750 Add
					1.500	MI-IT4901500 Add	MI-ITL4901500 Add
					2.000	MI-IT4902000 Add	MI-ITL4902000 Add

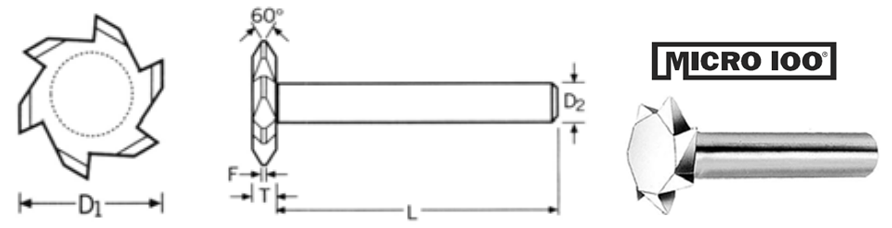

BRAZED THREAD MILLS

• Designed for milling precision I.D. and O.D. threads in all types of steels, non-ferrous metals and exotic materials.
• Equally effective in composites used in the aircraft industry.
• Thread form generated is American Standard thread.
• Minimum pitch listed is for an internal thread.
• Solid carbide head and shank for maximum rigidity.

Shank Diameter: -.0001 to -.0003”
Cutter Diameter: +.000 -.010”
OAL: + 1/32” Prices are pulled from our database in real time. Press Add button to see product price.

Cutter D1	Shank D2	Flat F	Len. L	Thick T	No. of Flutes	Min. Pitch	Part Number
3/8	1/4	.002	2-1/2	.093	4	.031	MI-TM375 Add
1/2	5/16	.0035	2-1/2	.125	5	.050	MI-TM500 Add
3/4	3/8	.0045	2-1/2	.156	6	.062	MI-TM750 Add
1	1/2	.009	3	.187	7	.125	MI-TM001 Add
