Boring Tools

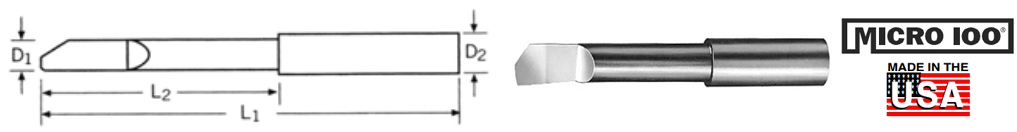

HELICAL BACK RAKE
BORING TOOLS
Neck is centered to shank for use in jig boring machines. The helical grind provides an ideal top rake for better chip control. Left-hand boring tools also available.
N/C GENERATION
Shank Diameter -.0001 to -.0003”
Minimum Bore Dia. +.001 -.000”
Maximum Bore Depth +.030 -.000”
Overall Length +1/64 Prices are pulled from our database in real time. Press Add button to see product price.
BRAZED BORING TOOLS
A lockdown groove completely encircles the tool so that the cutting point can be turned to any desired position. Prices are pulled from our database in real time. Press Add button to see product price.
BORING TOOLS
TiAlN Coated
Ground w/ Helical Rake
Tools Up to .490 Min. Bore Available
BORING TOOLS
Neck is centered to shank for use in jig boring machines. The helical grind provides an ideal top rake for better chip control. Left-hand boring tools also available.
N/C GENERATION
Shank Diameter -.0001 to -.0003”
Minimum Bore Dia. +.001 -.000”
Maximum Bore Depth +.030 -.000”
Overall Length +1/64 Prices are pulled from our database in real time. Press Add button to see product price.
Shank Dia. D2 |
OAL L1 |
Bore Dia. D1 |
Bore Depth L2 |
Neck Dia. N |
Part Number |
1/8 | 1-1/2 | 0.020 | 1/16 | 0.015 | MI-HBB020062 |
0.025 | 1/16 | 0.020 | MI-HBB025062 | ||
1/8 | 0.020 | MI-HBB025125 | |||
0.030 | 1/8 | 0.025 | MI-HBB030125 | ||
3/16 | 0.025 | MI-HBB030187 | |||
0.035 | 1/8 | 0.030 | MI-HBB035125 | ||
3/16 | 0.030 | MI-HBB035187 | |||
0.040 | 3/16 | 0.035 | MI-HBB040187 | ||
1/4 | 0.035 | MI-HBB040250 | |||
0.050 | 5/16 | 0.040 | MI-HBB050312 | ||
0.060 | 3/8 | 0.050 | MI-HBB060375 | ||
0.070 | 7/16 | 0.060 | MI-HBB070437 | ||
0.080 | 1/2 | 0.070 | MI-HBB080500 | ||
0.090 | 1/2 | 0.080 | MI-HBB090500 | ||
0.100 | 9/16 | 0.090 | MI-HBB100562 | ||
0.120 | 5/8 | 0.100 | MI-HBB120625 | ||
1 | 0.100 | MI-HBB1201000 | |||
3/16 | 2 | 0.135 | 3/4 | 0.110 | MI-HBB135750 |
1 | 0.110 | MI-HBB1351000 | |||
0.150 | 1 | 0.130 | MI-HBB1501000 | ||
1-1/4 | 0.130 | MI-HBB1501250 | |||
0.180 | 1 | 0.160 | MI-HBB1801000 | ||
1-1/4 | 0.160 | MI-HBB1801250 | |||
1-1/2 | 0.160 | MI-HBB1801500 | |||
1/4 | 2-1/2 | 0.210 | 1 | 0.185 | MI-HBB2101000 |
1-1/4 | 0.185 | MI-HBB2101250 | |||
1-1/2 | 0.185 | MI-HBB2101500 | |||
0.240 | 1 | 0.215 | MI-HBB2401000 | ||
1-1/2 | 0.215 | MI-HBB2401500 | |||
3/16 | 2 | 0.135 | 3/4 | 0.110 | MI-HBB135750 |
1 | 0.110 | MI-HBB1351000 | |||
0.150 | 1 | 0.130 | MI-HBB1501000 | ||
1-1/4 | 0.130 | MI-HBB1501250 | |||
0.180 | 1 | 0.160 | MI-HBB1801000 | ||
1-1/4 | 0.160 | MI-HBB1801250 | |||
1-1/2 | 0.160 | MI-HBB1801500 | |||
1/4 | 2-1/2 | 0.210 | 1 | 0.185 | MI-HBB2101000 |
1-1/4 | 0.185 | MI-HBB2101250 | |||
1-1/2 | 0.185 | MI-HBB2101500 | |||
0.240 | 1 | 0.215 | MI-HBB2401000 | ||
1-1/2 | 0.215 | MI-HBB2401500 | |||
1-3/4 | 0.215 | MI-HBB2401750 | |||
5/16 | 2-1/2 | 0.300 | 1 | 0.250 | MI-HBB3001000 |
1-1/2 | 0.250 | MI-HBB3001500 | |||
1-3/4 | 0.250 | MI-HBB3001750 | |||
3/8 | 2-1/2 | 0.360 | 1 | 0.320 | MI-HBB3601000 |
1-1/2 | 0.320 | MI-HBB3601500 | |||
1-3/4 | 0.320 | MI-HBB3601750 | |||
4 | 0.360 | 2 | 0.320 | MI-HBB3602000 | |
2-1/4 | 0.320 | MI-HBB3602250 | |||
2-1/2 | 0.320 | MI-HBB3602500 | |||
1/2 | 3 | 0.480 | 1-1/2 | 0.440 | MI-HBB4801500 |
2 | 0.440 | MI-HBB4802000 | |||
4 | 0.480 | 2-1/2 | 0.440 | MI-HBB4802500 | |
3 | 0.440 | MI-HBB4803000 | |||
6 | 0.480 | 3-1/2 | 0.440 | MI-HBB4803500 | |
4 | 0.440 | MI-HBB4804000 | |||
4-1/2 | 0.440 | MI-HBB4804500 |

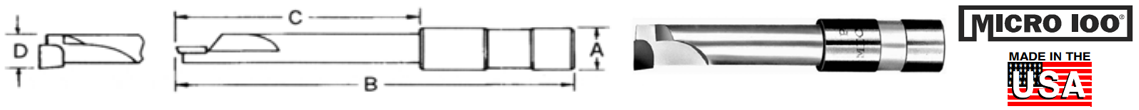

BRAZED BORING TOOLS
A lockdown groove completely encircles the tool so that the cutting point can be turned to any desired position. Prices are pulled from our database in real time. Press Add button to see product price.
A | D | B | C | Part Number |
3/8 | 5/16 | 2 | 3/4 | MI-PB1 |
2-3/8 | 1-1/8 | MI-PB2 | ||
2-3/4 | 1-1/2 | MI-PB3 | ||
3/8 | 2-3/16 | 15/16 | MI-PB4 | |
2-21/32 | 1-13/32 | MI-PB5 | ||
3-1/8 | 1-7/8 | MI-PB6 | ||
7/16 | 2-3/8 | 1-1/8 | MI-PB7 | |
2-15/16 | 1-11/16 | MI-PB8 | ||
3-1/2 | 2-1/4 | MI-PB9 | ||
1/2 | 5/16 | 2-1/4 | 3/4 | MI-PB10 |
2-5/8 | 1-1/8 | MI-PB11 | ||
3 | 1-1/2 | MI-PB12 | ||
3/8 | 2-5/8 | 1-1/8 | MI-PB13 | |
3-3/16 | 1-11/16 | MI-PB14 | ||
3-3/4 | 2-1/4 | MI-PB15 | ||
7/16 | 3 | 1-1/2 | MI-PB16 | |
3-3/4 | 2-1/4 | MI-PB17 | ||
4-1/2 | 3 | MI-PB18 | ||
5/8 | 5/16 | 2-1/4 | 3/4 | MI-PB19 |
2-5/8 | 1-1/8 | MI-PB20 | ||
3 | 1-1/2 | MI-PB21 | ||
7/16 | 2-5/8 | 1-1/8 | MI-PB22 | |
3-3/16 | 1-11/16 | MI-PB23 | ||
3-3/4 | 2-1/4 | MI-PB24 | ||
9/16 | 3 | 1-1/2 | MI-PB25 | |
3-3/4 | 2-1/4 | MI-PB26 | ||
4-1/2 | 3 | MI-PB27 | ||
11/16 | 3-3/8 | 1-7/8 | MI-PB28 | |
4-5/16 | 2-13/16 | MI-PB29 | ||
5-1/4 | 3-3/4 | MI-PB30 |
BORING TOOLS
TiAlN Coated
Ground w/ Helical Rake
- Max-Bore has a special helical flute for maximum shearing action with a better finish
- Eliptical neck for greater strength
Min Bore |
Radius | Shank | OAL | Max Depth |
Part Number |
.120 | .007 | 2 | .375 | IT-11-1300 | |
.500 | IT-11-1305 | ||||
.750 | IT-11-1310 | ||||
.140 | .007 | 3/16 | 2-1/2 | .500 | IT-11-1311 |
.750 | IT-11-1312 | ||||
.160 | .007 | 3/16 | 2-1/2 | .500 | IT-11-1313 |
.750 | IT-11-1314 | ||||
1.000 | IT-11-1316 | ||||
.180 | .007 | 3/16 | 2-1/2 | .375 | IT-11-1315 |
.500 | IT-11-1320 | ||||
.750 | IT-11-1325 | ||||
1.000 | IT-11-1330 | ||||
.200 | .007 | 1/4 | 2-1/2 | .375 | IT-11-1331 |
0.5 | IT-11-1332 | ||||
0.75 | IT-11-1333 | ||||
1 | IT-11-1334 |
