Corner Radius Endmills

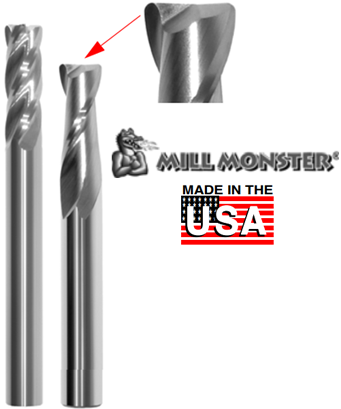

CORNER RADIUS ENDMILLS
SOLID CARBIDE
2 & 4 FLUTE, SINGLE END

30° helix, right hand spiral, right hand cut
Center cutting
Used for generating corner radius on work piece
Corner radius promotes additional strength for longer tool life,
resulting in greater productivity
Use coated tools for increased tool life
Tolerances:
Cutting Dia: +.000”/-.002”
Shank Dia: +.0000” /-.0005”
Materials: Cast iron, non-ferrous metals plastics and abrasive materials

Prices are pulled from our database in real time. Press Add button to see product price.
2 FLUTE RADIUS ENDMILLS

					Uncoated	TiAlN Coated
Mill Dia	LOC	Shank	OAL	Corner Radius	Part Number	Part Number
1/8	1/2	1/8	1-1/2	.010R	MO-EM602300-2	MO-EM602303-2
1/8	1/2	1/8	1-1/2	.030R	MO-EM602318-2	MO-EM602321-2
3/16	5/8	3/16	2	.010R	MO-EM602424-2	MO-EM602427-2
3/16	5/8	3/16	2	.030R	MO-EM602442-2	MO-EM602445-2
1/4	3/4	1/4	2-1/2	.015R	MO-EM602551-2	MO-EM602554-2
1/4	3/4	1/4	2-1/2	.030R	MO-EM602569-2	MO-EM602572-2
1/4	3/4	1/4	2-1/2	.060R	MO-EM602581-2	MO-EM602584-2
5/16	13/16	5/16	2-1/2	.015R	MO-EM602684-2	MO-EM602687-2
5/16	13/16	5/16	2-1/2	.030R	MO-EM602702-2	MO-EM602705-2
5/16	13/16	5/16	2-1/2	.060R	MO-EM602714-2	MO-EM602717-2
3/8	1	3/8	2-1/2	.015R	MO-EM602820-2	MO-EM602823-2
3/8	1	3/8	2-1/2	.030R	MO-EM602838-2	MO-EM602841-2
3/8	1	3/8	2-1/2	.060R	MO-EM602850-2	MO-EM602853-2
7/16	1	7/16	2-3/4	.015R	MO-EM602961-2	MO-EM602964-2
7/16	1	7/16	2-3/4	.030R	MO-EM602980-2	MO-EM602983-2
7/16	1	7/16	2-3/4	.060R	MO-EM602992-2	MO-EM602995-2
1/2	1	1/2	3	.015R	MO-EM603003-2	MO-EM603006-2
1/2	1	1/2	3	.030R	MO-EM603021-2	MO-EM603024-2
1/2	1	1/2	3	.060R	MO-EM603033-2	MO-EM603036-2
1/2	1	1/2	3	.125R	MO-EM603045-2	MO-EM603048-2
5/8	1-1/4	5/8	3-1/2	.015R	MO-EM603150-2	MO-EM603153-2
5/8	1-1/4	5/8	3-1/2	.030R	MO-EM603168-2	MO-EM603171-2
5/8	1-1/4	5/8	3-1/2	.060R	MO-EM603180-2	MO-EM603183-2
3/4	1-1/2	3/4	4	.020R	MO-EM603303-2	MO-EM603306-2
3/4	1-1/2	3/4	4	.045R	MO-EM603321-2	MO-EM603324-2
3/4	1-1/2	3/4	4	.090R	MO-EM603333-2	MO-EM603336-2
1	1-1/2	1	4	.020R	MO-EM603456-2	MO-EM603459-2
1	1-1/2	1	4	.045R	MO-EM603474-2	MO-EM603477-2
1	1-1/2	1	4	.090R	MO-EM603486-2	MO-EM603489-2

4 FLUTE RADIUS ENDMILLS

					Uncoated	TiAlN Coated
Mill Dia	LOC	Shank	OAL	Corner Radius	Part Number	Part Number
1/8	1/2	1/8	1-1/2	.015R	MO-EM602306-4	MO-EM602309-4
1/8	1/2	1/8	1-1/2	.030R	MO-EM602318-4	MO-EM602321-4
3/16	5/8	3/16	2	.015R	MO-EM602430-4	MO-EM602433-4
3/16	5/8	3/16	2	.030R	MO-EM602442-4	MO-EM602445-4
1/4	3/4	1/4	2-1/2	.020R	MO-EM602557-4	MO-EM602560-4
1/4	3/4	1/4	2-1/2	.030R	MO-EM602569-4	MO-EM602572-4
5/16	13/16	5/16	2-1/2	.020R	MO-EM602690-4	MO-EM602693-4
5/16	13/16	5/16	2-1/2	.030R	MO-EM602702-4	MO-EM602705-4
3/8	1	3/8	2-1/2	.015R	MO-EM602820-4	MO-EM602823-4
3/8	1	3/8	2-1/2	.030R	MO-EM602838-4	MO-EM602841-4
3/8	1	3/8	2-1/2	.060R	MO-EM602850-4	MO-EM602853-4
7/16	1	7/16	2-3/4	.015R	MO-EM602961-4	MO-EM602964-4
7/16	1	7/16	2-3/4	.030R	MO-EM602980-4	MO-EM602983-4
7/16	1	7/16	2-3/4	.060R	MO-EM602992-4	MO-EM602995-4
1/2	1	1/2	3	.015R	MO-EM603003-4	MO-EM603006-4
1/2	1	1/2	3	.030R	MO-EM603021-4	MO-EM603024-4
1/2	1	1/2	3	.045R	MO-EM603027-4	MO-EM603030-4
1/2	1	1/2	3	.060R	MO-EM603033-4	MO-EM603036-4
1/2	1	1/2	3	.125R	MO-EM603045-4	MO-EM603048-4
5/8	1-1/4	5/8	3-1/2	.015R	MO-EM603150-4	MO-EM603153-4
5/8	1-1/4	5/8	3-1/2	.030R	MO-EM603168-4	MO-EM603171-4
5/8	1-1/4	5/8	3-1/2	.060R	MO-EM603180-4	MO-EM603183-4
5/8	1-1/4	5/8	3-1/2	.125R	MO-EM603192-4	MO-EM603195-4
3/4	1-1/2	3/4	4	.020R	MO-EM603303-4	MO-EM603306-4
3/4	1-1/2	3/4	4	.030R	MO-EM603315-4	MO-EM603318-4
3/4	1-1/2	3/4	4	.060R	MO-EM603327-4	MO-EM603330-4
3/4	1-1/2	3/4	4	.125R	MO-EM603339-4	MO-EM603342-4
1	1-1/2	1	4	.020R	MO-EM603456-4	MO-EM603459-4
1	1-1/2	1	4	.030R	MO-EM603468-4	MO-EM603471-4
1	1-1/2	1	4	.060R	MO-EM603480-4	MO-EM603483-4
1	1-1/2	1	4	.125R	MO-EM603492-4	MO-EM603495-4
