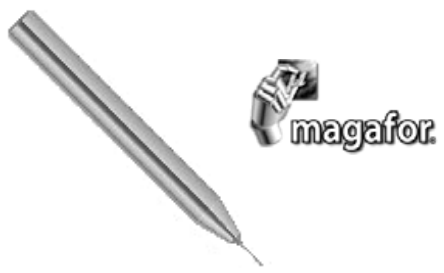

Solid Carbide High Precision Micro Reamers

SOLID CARBIDE HIGH PRECISION MICRO REAMERS
Spiral Flute-Right Hand Cut-Left Hand Helix

For through hole applications
Tolerance 0 + .00012”
0.0236” to 0.0929” = 4 flutes
0.0933” to 0.5138 = 6 flutes
10° left spiral, right hand cut
Special orders also available

Prices are pulled from our database in real time. Press Add button to see product price.

mm	Dec.	OAL	Part Number
0.60	.0236	1.30”	MAG-86000060
0.61	.0240	1.30”	MAG-86000061
0.62	.0244	1.30”	MAG-86000062
0.63	.0248	1.30”	MAG-86000063
0.64	.0252	1.30”	MAG-86000064
0.65	.0256	1.30”	MAG-86000065
0.66	.0260	1.30”	MAG-86000066
0.67	.0264	1.30”	MAG-86000067
0.68	.0268	1.30”	MAG-86000068
0.69	.0272	1.30”	MAG-86000069
0.70	.0276	1.30”	MAG-86000070
0.71	.0280	1.30”	MAG-86000071
0.72	.0283	1.30”	MAG-86000072
0.73	.0287	1.30”	MAG-86000073
0.74	.0291	1.30”	MAG-86000074
0.75	.0295	1.30”	MAG-86000075
0.76	.0299	1.30”	MAG-86000076
0.77	.0303	1.30”	MAG-86000077
0.78	.0307	1.30”	MAG-86000078
0.79	.0311	1.30”	MAG-86000079
0.80	.0315	1.30”	MAG-86000080
0.81	.0319	1.30”	MAG-86000081
0.82	.0323	1.30”	MAG-86000082
0.83	.0327	1.30”	MAG-86000083
0.84	.0331	1.30”	MAG-86000084
0.85	.0335	1.30”	MAG-86000085
0.86	.0339	1.30”	MAG-86000086
0.87	.0343	1.30”	MAG-86000087
0.88	.0346	1.30”	MAG-86000088
0.89	.0350	1.30”	MAG-86000089
0.90	.0354	1.30”	MAG-86000090
0.91	.0358	1.30”	MAG-86000091
0.92	.0362	1.30”	MAG-86000092
0.93	.0366	1.30”	MAG-86000093
0.94	.0370	1.30”	MAG-86000094
0.95	.0374	1.30”	MAG-86000095
0.96	.0378	1.30”	MAG-86000096
0.97	.0382	1.30”	MAG-86000097
0.98	.0386	1.30”	MAG-86000098
0.99	.0390	1.30”	MAG-86000099
1.00	.0394	1.30”	MAG-86000100
1.01	.0398	1.30”	MAG-86000101
1.02	.0402	1.30”	MAG-86000102
1.03	.0406	1.30”	MAG-86000103
1.04	.0409	1.30”	MAG-86000104
1.05	.0413	1.30”	MAG-86000105
1.06	.0417	1.58”	MAG-86000106
1.07	.0421	1.58”	MAG-86000107
1.08	.0425	1.58”	MAG-86000108
1.09	.0429	1.58”	MAG-86000109
1.10	.0433	1.58”	MAG-86000110
1.11	.0437	1.58”	MAG-86000111
1.12	.0441	1.58”	MAG-86000112
1.13	.0445	1.58”	MAG-86000113
1.14	.0449	1.58”	MAG-86000114
1.15	.0453	1.58”	MAG-86000115
1.16	.0457	1.58”	MAG-86000116
1.17	.0461	1.58”	MAG-86000117
1.18	.0465	1.58”	MAG-86000118
1.19	.0469	1.58”	MAG-86000119
1.20	.0472	1.58”	MAG-86000120
1.21	.0476	1.58”	MAG-86000121
1.22	.0480	1.58”	MAG-86000122
1.23	.0484	1.58”	MAG-86000123
1.24	.0488	1.58”	MAG-86000124
1.25	.0492	1.58”	MAG-86000125
1.26	.0496	1.58”	MAG-86000126
1.27	.0500	1.58”	MAG-86000127
1.28	.0504	1.58”	MAG-86000128
1.29	.0508	1.58”	MAG-86000129
1.30	.0512	1.58”	MAG-86000130
1.31	.0516	1.58”	MAG-86000131
1.32	.0520	1.58”	MAG-86000132
1.33	.0524	1.58”	MAG-86000133
1.34	.0528	1.58”	MAG-86000134
1.35	.0531	1.58”	MAG-86000135
1.36	.0535	1.58”	MAG-86000136
1.37	.0539	1.58”	MAG-86000137
1.38	.0543	1.58”	MAG-86000138
1.39	.0547	1.58”	MAG-86000139
1.40	.0551	1.58”	MAG-86000140
1.41	.0555	1.58”	MAG-86000141
1.42	.0559	1.58”	MAG-86000142
1.43	.0563	1.58”	MAG-86000143
1.44	.0567	1.58”	MAG-86000144
1.45	.0571	1.58”	MAG-86000145
1.46	.0575	1.58”	MAG-86000146
1.47	.0579	1.58”	MAG-86000147
1.48	.0583	1.58”	MAG-86000148
1.49	.0587	1.58”	MAG-86000149
1.50	.0590	1.58”	MAG-86000150
1.51	.0594	1.58”	MAG-86000151
1.52	.0598	1.58”	MAG-86000152
1.53	.0602	1.58”	MAG-86000153
1.54	.0606	1.58”	MAG-86000154
1.55	.0610	1.58”	MAG-86000155
1.56	.0614	1.97”	MAG-86000156
1.57	.0618	1.97”	MAG-86000157
1.58	.0622	1.97”	MAG-86000158
1.59	.0626	1.97”	MAG-86000159
1.60	.0630	1.97”	MAG-86000160
1.61	.0634	1.97”	MAG-86000161
1.62	.0638	1.97”	MAG-86000162
1.63	.0642	1.97”	MAG-86000163
1.64	.0646	1.97”	MAG-86000164
1.65	.0650	1.97”	MAG-86000165
1.66	.0654	1.97”	MAG-86000166
1.67	.0657	1.97”	MAG-86000167
1.68	.0661	1.97”	MAG-86000168
1.69	.0665	1.97”	MAG-86000169
1.70	.0669	1.97”	MAG-86000170
1.71	.0673	1.97”	MAG-86000171
1.72	.0677	1.97”	MAG-86000172
1.73	.0681	1.97”	MAG-86000173
1.74	.0685	1.97”	MAG-86000174
1.75	.0689	1.97”	MAG-86000175
1.76	.0693	1.97”	MAG-86000176
1.77	.0697	1.97”	MAG-86000177
1.78	.0701	1.97”	MAG-86000178
1.79	.0705	1.97”	MAG-86000179
1.80	.0709	1.97”	MAG-86000180
1.81	.0713	1.97”	MAG-86000181
1.82	.0717	1.97”	MAG-86000182
1.83	.0720	1.97”	MAG-86000183
1.84	.0724	1.97”	MAG-86000184
1.85	.0728	1.97”	MAG-86000185
1.86	.0732	1.97”	MAG-86000186
1.87	.0736	1.97”	MAG-86000187
1.88	.0740	1.97”	MAG-86000188
1.89	.0744	1.97”	MAG-86000189
1.90	.0748	1.97”	MAG-86000190
1.91	.0752	1.97”	MAG-86000191
1.92	.0756	1.97”	MAG-86000192
1.93	.0760	1.97”	MAG-86000193
1.94	.0764	1.97”	MAG-86000194
1.95	.0768	1.97”	MAG-86000195
1.96	.0772	1.97”	MAG-86000196
1.97	.0776	1.97”	MAG-86000197
1.98	.0780	1.97”	MAG-86000198
1.99	.0783	1.97”	MAG-86000199
2.00	.0787	1.97”	MAG-86000200
2.01	.0791	1.97”	MAG-86000201
2.02	.0795	1.97”	MAG-86000202
2.03	.0799	1.97”	MAG-86000203
2.04	.0803	1.97”	MAG-86000204
2.05	.0807	1.97”	MAG-86000205
2.06	.0811	1.97”	MAG-86000206
2.07	.0815	1.97”	MAG-86000207
2.08	.0819	1.97”	MAG-86000208
2.09	.0823	1.97”	MAG-86000209
2.10	.0827	1.97”	MAG-86000210
2.11	.0831	1.97”	MAG-86000211
2.12	.0835	1.97”	MAG-86000212
2.13	.0839	1.97”	MAG-86000213
2.14	.0843	1.97”	MAG-86000214
2.15	.0846	1.97”	MAG-86000215
2.16	.0850	1.97”	MAG-86000216
2.17	.0854	1.97”	MAG-86000217
2.18	.0858	1.97”	MAG-86000218
2.19	.0862	1.97”	MAG-86000219
2.20	.0866	1.97”	MAG-86000220
2.21	.0870	1.97”	MAG-86000221
2.22	.0874	1.97”	MAG-86000222
2.23	.0878	1.97”	MAG-86000223
2.24	.0882	1.97”	MAG-86000224
2.25	.0886	1.97”	MAG-86000225
2.26	.0890	1.97”	MAG-86000226
2.27	.0894	1.97”	MAG-86000227
2.28	.0898	1.97”	MAG-86000228
2.29	.0902	1.97”	MAG-86000229
2.30	.0906	1.97”	MAG-86000230
2.31	.0909	1.97”	MAG-86000231
2.32	.0913	1.97”	MAG-86000232
2.33	.0917	1.97”	MAG-86000233
2.34	.0921	1.97”	MAG-86000234
2.35	.0925	1.97”	MAG-86000235
2.36	.0929	1.97”	MAG-86000236
2.37	.0933	2.25”	MAG-86000237
2.38	.0937	2.25”	MAG-86000238
2.39	.0941	2.25”	MAG-86000239
2.40	.0945	2.25”	MAG-86000240
2.41	.0949	2.25”	MAG-86000241
2.42	.0953	2.25”	MAG-86000242
2.43	.0957	2.25”	MAG-86000243
2.44	0961	2.25”	MAG-86000244
2.45	.0965	2.25”	MAG-86000245
2.46	.0969	2.25”	MAG-86000246
2.47	.0972	2.25”	MAG-86000247
2.48	.0976	2.25”	MAG-86000248
2.49	.0980	2.25”	MAG-86000249
2.50	.0984	2.25”	MAG-86000250
2.51	.0988	2.25”	MAG-86000251
2.52	.0992	2.25”	MAG-86000252
2.53	.0996	2.25”	MAG-86000253
2.54	.1000	2.25”	MAG-86000254
2.55	.1004	2.25”	MAG-86000255
2.56	.1008	2.25”	MAG-86000256
2.57	.1012	2.25”	MAG-86000257
2.58	.1016	2.25”	MAG-86000258
2.59	.1020	2.25”	MAG-86000259
2.60	.1024	2.25”	MAG-86000260
2.61	.1028	2.25”	MAG-86000261
2.62	.1031	2.25”	MAG-86000262
2.63	.1035	2.25”	MAG-86000263
2.64	.1039	2.25”	MAG-86000264
2.65	.1043	2.25”	MAG-86000265
2.66	.1047	2.25”	MAG-86000266
2.67	.1051	2.25”	MAG-86000267
2.68	.1055	2.25”	MAG-86000268
2.69	.1059	2.25”	MAG-86000269
2.70	.1063	2.25”	MAG-86000270
2.71	.1067	2.25”	MAG-86000271
2.72	.1071	2.25”	MAG-86000272
2.73	.1075	2.25”	MAG-86000273
2.74	.1079	2.25”	MAG-86000274
2.75	.1083	2.25”	MAG-86000275
2.76	.1087	2.25”	MAG-86000276
2.77	.1091	2.25”	MAG-86000277
2.78	.1094	2.25”	MAG-86000278
2.79	.1098	2.25”	MAG-86000279
2.80	.1102	2.25”	MAG-86000280
2.81	.1106	2.25”	MAG-86000281
2.82	.1110	2.25”	MAG-86000282
2.83	.1114	2.25”	MAG-86000283
2.84	.1118	2.25”	MAG-86000284
2.85	.1122	2.25”	MAG-86000285
2.86	.1126	2.25”	MAG-86000286
2.87	.1130	2.25”	MAG-86000287
2.88	.1134	2.25”	MAG-86000288
2.89	.1138	2.25”	MAG-86000289
2.90	.1142	2.25”	MAG-86000290
2.91	.1146	2.25”	MAG-86000291
2.92	.1150	2.25”	MAG-86000292
2.93	.1154	2.25”	MAG-86000293
2.94	.1157	2.25”	MAG-86000294
2.95	.1161	2.25”	MAG-86000295
2.96	.1165	2.25”	MAG-86000296
2.97	.1169	2.25”	MAG-86000297
2.98	.1173	2.25”	MAG-86000298
2.99	.1177	2.25”	MAG-86000299
3.00	.1181	2.25”	MAG-86000300
3.01	.1185	2.25”	MAG-86000301
3.02	.1189	2.25”	MAG-86000302
3.03	.1193	2.25”	MAG-86000303
3.04	.1197	2.25”	MAG-86000304
3.05	.1201	2.25”	MAG-86000305
3.06	.1205	2.25”	MAG-86000306
3.07	.1209	2.25”	MAG-86000307
3.08	.1213	2.25”	MAG-86000308
3.09	.1217	2.25”	MAG-86000309
3.10	.1220	2.25”	MAG-86000310
3.11	.1224	2.25”	MAG-86000311
3.12	.1228	2.25”	MAG-86000312
3.13	.1232	2.25”	MAG-86000313
3.14	.1236	2.25”	MAG-86000314
3.15	.1240	2.25”	MAG-86000315
3.16	.1244	2.25”	MAG-86000316
3.17	.1248	2.25”	MAG-86000317
3.18	.1252	2.25”	MAG-86000318
3.19	.1256	2.25”	MAG-86000319
3.20	.1260	2.25”	MAG-86000320
3.21	.1264	2.25”	MAG-86000321
3.22	.1268	2.25”	MAG-86000322
3.23	.1272	2.25”	MAG-86000323
3.24	.1276	2.25”	MAG-86000324
3.25	.1280	2.25”	MAG-86000325
3.26	.1283	2.25”	MAG-86000326
3.27	.1287	2.25”	MAG-86000327
3.28	.1291	2.25”	MAG-86000328
3.29	.1295	2.25”	MAG-86000329
3.30	.1299	2.25”	MAG-86000330
3.31	.1303	2.25”	MAG-86000331
3.32	.1308	2.25”	MAG-86000332
3.33	.1311	2.25”	MAG-86000333
3.34	.1315	2.25”	MAG-86000334
3.35	.1319	2.25”	MAG-86000335
3.36	.1323	2.25”	MAG-86000336
3.37	.1327	2.25”	MAG-86000337
3.38	.1331	2.25”	MAG-86000338
3.39	.1335	2.25”	MAG-86000339
3.40	.1339	2.25”	MAG-86000340
3.41	.1343	2.25”	MAG-86000341
3.42	.1346	2.25”	MAG-86000342
3.43	.1350	2.25”	MAG-86000343
3.44	.1354	2.25”	MAG-86000344
