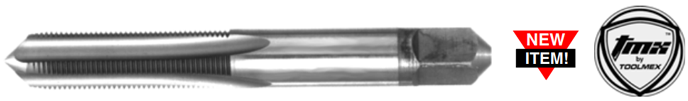

Spiral Point Taps

SPIRAL POINT TAPS
Fractional & Machine Screw Sizes
Standard HSS, Ground Thread
Plug Chamfer
  • Right hand cut
  • Ground thread
  • Fractional & machine screw sizes
  • HSS M2
  • 1/4” and 5/16” have 2 flutes
    3/8” thru 1” have 3 flutes
Prices are pulled from our database in real time. Press Add button to see product price.
Fractional Sizes
Size H
Limit		 OAL Plug Part
Number
1/4-20 H3 2-1/2 TMX-5770-058
1/4-28 H3 2-1/2 TMX-5770-078
5/16-18 H3 2-23/32 TMX-5770-100
5/16-24 H3 2-23/32 TMX-5770-120
3/8-16 H3 2-5/16 TMX-5770-138
3/8-24 H3 2-5/16 TMX-5770-153
7/16-14 H3 3-5/32 TMX-5770-167
7/16-20 H3 3-5/32 TMX-5770-179
1/2-13 H3 3-3/8 TMX-5770-191
1/2-20 H3 3-3/8 TMX-5770-205
9/16-12 H3 3-19/32 TMX-5770-220
9/16-18 H5 3-19/32 TMX-5770-225
5/8-11 H3 3-13/16 TMX-5770-245
5/8-18 H3 3-13/16 TMX-5770-257
3/4-10 H3 4-1/4 TMX-5770-271
3/4-16 H3 4-1/4 TMX-5770-283
7/8-9 H4 4-11/16 TMX-5770-299
7/8-14 H6 4-11/16 TMX-5770-311
1-8 H4 5-1/8 TMX-5770-325
1-12 H4 5-1/8 TMX-5770-337
1-14 H4 5-1/8 TMX-5770-345

Machine Screw Sizes
Size H
Limit		 OAL Plug
Part
Number
0-80 H2 1-5/8 TMX-5772-022
1-64 H2 1-11/16 TMX-5772-032
1-72 H2 1-11/16 TMX-5772-043
2-56 H2 1-3/4 TMX-5772-052
2-64 H2 1-3/4 TMX-5772-063
3-48 H2 1-3/16 TMX-5772-077
3-56 H2 1-3/16 TMX-5772-088
4-40 H2 1-7/8 TMX-5772-113
4-48 H2 1-7/8 TMX-5772-124
5-40 H2 1-15/16 TMX-5772-138
5-44 H2 1-15/16 TMX-5772-149
6-32 H3 2 TMX-5772-165
6-32 H13 2 TMX-5772-550
6-40 H2 2 TMX-5772-174
8-32 H3 2-1/8 TMX-5772-190
8-32 H13 2-1/8 TMX-5772-570
8-36 H2 2-1/8 TMX-5772-199
10-24 H3 2-3/8 TMX-5772-215
10-32 H3 2-3/8 TMX-5772-226
12-24 H3 2-3/8 TMX-5772-240
12-28 H3 2-3/8 TMX-5772-251
