T-Slot Milling Cutters
Shank Type- HSS & M35 Cobalt
KEO T-slot milling cutters have staggered teeth on the circumferential surface and teeth on both sides. The side teeth alternate to provide maximum chip clearance and stability to permit rapid milling of T-slots with lower risk of breakage. Prices are pulled from our database in real time. Press Add button to see product price.

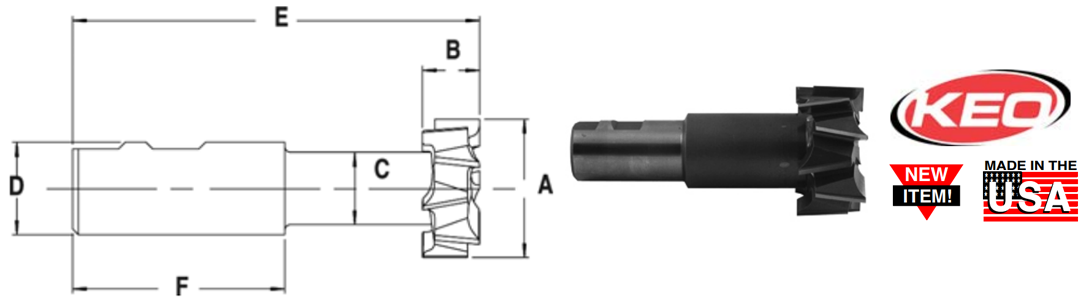

| A | B | C | D | E | F | ||
| Bolt Size |
Head Dia. |
Head Width |
Neck Dia. |
Shank Dia. |
OAL | Shank Length |
Part Number |
| 1/4 | 9/16 | 15/64 | 17/64 | 1/2 | 2-19/32 | 1-25/32 | KEO-70140 |
| 5/16 | 21/32 | 17/64 | 21/64 | 1/2 | 2-11/16 | 1-25/32 | KEO-70560 |
| 3/8 | 25/32 | 21/64 | 13/32 | 3/4 | 3-1/4 | 2-1/32 | KEO-70380 |
| 1/2 | 31/32 | 25/64 | 17/32 | 3/4 | 3-7/16 | 2-1/32 | KEO-70120 |
| 5/8 | 1-1/4 | 31/64 | 21/32 | 1 | 3-15/16 | 2-9/32 | KEO-70580 |
| 3/4 | 1-15/32 | 5/8 | 25/32 | 1 | 4-7/16 | 2-9/32 | KEO-70340 |
| 1 | 1-27/32 | 53/64 | 1-1/32 | 1-1/4 | 4-13/16 | 2-9/32 | KEO-71000 |
| 1-1/4 | 2-7/32 | 1-3/32 | 1-7/32 | 1-1/4 | 5-3/8 | 2-9/32 | KEO-71140 |
| 1-1/2 | 2-21/32 | 1-11/32 | 1-17/32 | 1-1/4 | 5-29/32 | 2-9/32 | KEO-71120 |
