Solid Carbide Saws & Saw Arbors

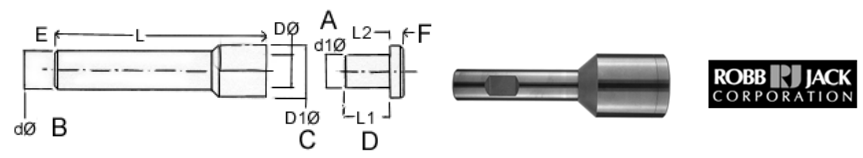

TOLERANCES
DØ - +.0002” / -.0003”
D1Ø - +/- .003”
dØ - -.0001” / -.0002”
L - +/- .060”
d1Ø - +.0000” / -0002”
L1 - +.060” / -.000”
L2 - +.060” / -.000”
- Total thickness of saws/ spacers should not exceed 50% of L1 dimension.
- Arbor caps with longer L1dimension available.
| DØ d1Ø |
dØ | D1Ø | L1 | L | L2 | Part Number |
| 1/4 | 1/2 | 1/2 | 3/8 | 2- 7/8 | 3/16 | ROB-AB250 |
| 3/8 | 1/2 | 5/8 | 3/8 | 2- 7/8 | 1/4 | ROB-AB375 |
| 1/2 | 1/2 | 3/4 | 1/2 | 2- 7/8 | 3/16 | ROB-AB500 |
| 5/8 | 3/4 | 1 | 7/8 | 4 | 1/4 | ROB-AB625 |
| 7/8 | 3/4 | 1-1/4 | 1 | 4 | 1/4 | ROB-AB875 |
| 1 | 3/4 | 1-1/2 | 1 | 4 | 1/4 | ROB-AB1000 |
| 1-1/4 | 1 | 1-3/4 | 1- 3/8 | 5 | 1/4 | ROB-AB1250 |
APPLICATION GUIDELINES
- If depth of cut exceeds 3 times saw thickness double standard concavity is recommended.
- If depth of cut exceeds 5 times saw thickness alternate tooth chamfer is recommended.
- Saw diameter concentricity should be within .001” when assembled on arbor.
- When using more than one saw at a time, a flat and parallel hub should be used to ensure proper spacing.
- If steel flanges are used, select the largest diameter possible.
- Keyways (generally not used with solid carbide slitting saws) also available.
Please call for special orders.
- Special Cutting Diameters
- Special Thicknesses
- Special Arbor Hole Sizes and Keyways
- Special Chamfers, Angles or Radii
- Special Tooth Configurations/Pitches

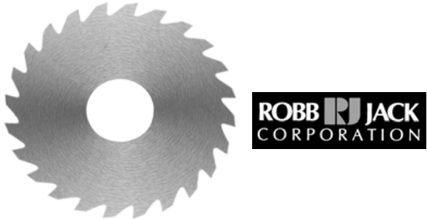

| 3/4" dia 1/4" Hole 10 or 20 teeth |
1" dia 3/8" Hole 12 or 24 teeth |
1 1/4" dia 1/2" Hole 16 or 36 teeth |
1 1/2" dia 1/2" Hole 16 or 36 teeth |
1 3/4" dia 1/2", 5/8" or 7/8" Hole 24 or 36 teeth |
|
| Thickness | Part Number | Part Number | Part Number | Part Number | Part Number |
| .0020 | ROB-C07002 | ROB-C10002 | ROB-C12002 | ROB-C15002 | ROB-C17002 |
| .0040 | ROB-C07004 | ROB-C10004 | ROB-C12004 | ROB-C15004 | ROB-C17004 |
| .0060 | ROB-C07006 | ROB-C10006 | ROB-C12006 | ROB-C15006 | ROB-C17006 |
| .0080 | ROB-C07008 | ROB-C10008 | ROB-C12008 | ROB-C15008 | ROB-C17008 |
| .0100 | ROB-C07010 | ROB-C10010 | ROB-C12010 | ROB-C15010 | ROB-C17010 |
| .0120 | ROB-C07012 | ROB-C10012 | ROB-C12012 | ROB-C15012 | ROB-C17012 |
| .0140 | ROB-C07014 | ROB-C10014 | ROB-C12014 | ROB-C15014 | ROB-C17014 |
| .0156 | ROB-C07016 | ROB-C10016 | ROB-C12016 | ROB-C15016 | ROB-C17016 |
| .0180 | ROB-C07018 | ROB-C10018 | ROB-C12018 | ROB-C15018 | ROB-C17018 |
| .0200 | ROB-C07020 | ROB-C10020 | ROB-C12020 | ROB-C15020 | ROB-C17020 |
| .0230 | ROB-C07023 | ROB-C10023 | ROB-C12023 | ROB-C15023 | ROB-C17023 |
| .0250 | ROB-C07025 | ROB-C10025 | ROB-C12025 | ROB-C15025 | ROB-C17025 |
| .0280 | ROB-C07028 | ROB-C10028 | ROB-C12028 | ROB-C15028 | ROB-C17028 |
| .0312 | ROB-C07032 | ROB-C10032 | ROB-C12032 | ROB-C15032 | ROB-C17032 |
| .0350 | ROB-C07035 | ROB-C10035 | ROB-C12035 | ROB-C15035 | ROB-C17035 |
| .0400 | ROB-C07040 | ROB-C10040 | ROB-C12040 | ROB-C15040 | ROB-C17040 |
| .0468 | ROB-C07045 | ROB-C10045 | ROB-C12045 | ROB-C15045 | ROB-C17045 |
| .0510 | ROB-C07051 | ROB-C10051 | ROB-C12051 | ROB-C15051 | ROB-C17051 |
| .0625 | ROB-C07062 | ROB-C10062 | ROB-C12062 | ROB-C15062 | ROB-C17062 |
| .0781 | ROB-C07078 | ROB-C10078 | ROB-C12078 | ROB-C15078 | ROB-C17078 |
| .0937 | ROB-C07092 | ROB-C10092 | ROB-C12092 | ROB-C15092 | ROB-C17092 |
| .1250 | ROB-C07125 | ROB-C10125 | ROB-C12125 | ROB-C15125 | ROB-C17125 |
| .1562 | ROB-C07156 | ROB-C10156 | ROB-C12156 | ROB-C15156 | ROB-C17156 |
| .1875 | ROB-C07187 | ROB-C10187 | ROB-C12187 | ROB-C15187 | ROB-C17187 |
| .2500 | ROB-C07250 | ROB-C10250 | ROB-C12250 | ROB-C15250 | ROB-C17250 |
- Find the price of the closest thicker standard saw
- To this, add $5.00 for one of a size
- Add $3.50 for two to six of a size
- For 7 or more, there is no additional charge above the base price
- Quantity discounts apply to special thicknesses
- Saws made for gangs with special tolerances are priced on application

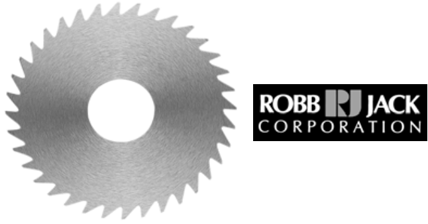

| 2" dia 1/2" or 1" Hole 24 or 48 teeth |
2 1/4" dia 5/8" Hole 28 or 56 teeth |
2 1/2" dia 1" Hole 28 or 56 teeth |
2 3/4" dia 1" Hole 30 or 60 teeth |
3" dia 1" Hole 30 or 60 teeth |
|
| Thickness | Part Number | Part Number | Part Number | Part Number | Part Number |
| .0020 | ROB-C20002 | ROB-C22002 | ROB-C25002 | ROB-C27002 | ROB-C30002 |
| .0040 | ROB-C20004 | ROB-C22004 | ROB-C25004 | ROB-C27004 | ROB-C30004 |
| .0060 | ROB-C20006 | ROB-C22006 | ROB-C25006 | ROB-C27006 | ROB-C30006 |
| .0080 | ROB-C20008 | ROB-C22008 | ROB-C25008 | ROB-C27008 | ROB-C30008 |
| .0100 | ROB-C20010 | ROB-C22010 | ROB-C25010 | ROB-C27010 | ROB-C30010 |
| .0120 | ROB-C20012 | ROB-C22012 | ROB-C25012 | ROB-C27012 | ROB-C30012 |
| .0140 | ROB-C20014 | ROB-C22014 | ROB-C25014 | ROB-C27014 | ROB-C30014 |
| .0156 | ROB-C20016 | ROB-C22016 | ROB-C25016 | ROB-C27016 | ROB-C30016 |
| .0180 | ROB-C20018 | ROB-C22018 | ROB-C25018 | ROB-C27018 | ROB-C30018 |
| .0200 | ROB-C20020 | ROB-C22020 | ROB-C25020 | ROB-C27020 | ROB-C30020 |
| .0230 | ROB-C20023 | ROB-C22023 | ROB-C25023 | ROB-C27023 | ROB-C30023 |
| .0250 | ROB-C20025 | ROB-C22025 | ROB-C25025 | ROB-C27025 | ROB-C30025 |
| .0280 | ROB-C20028 | ROB-C22028 | ROB-C25028 | ROB-C27028 | ROB-C30028 |
| .0312 | ROB-C20032 | ROB-C22032 | ROB-C25032 | ROB-C27032 | ROB-C30032 |
| .0350 | ROB-C20035 | ROB-C22035 | ROB-C25035 | ROB-C27035 | ROB-C30035 |
| .0400 | ROB-C20040 | ROB-C22040 | ROB-C25040 | ROB-C27040 | ROB-C30040 |
| .0468 | ROB-C20045 | ROB-C22045 | ROB-C25045 | ROB-C27045 | ROB-C30045 |
| .0510 | ROB-C20051 | ROB-C22051 | ROB-C25051 | ROB-C27051 | ROB-C30051 |
| .0625 | ROB-C20062 | ROB-C22062 | ROB-C25062 | ROB-C27062 | ROB-C30062 |
| .0781 | ROB-C20078 | ROB-C22078 | ROB-C25078 | ROB-C27078 | ROB-C30078 |
| .0937 | ROB-C20092 | ROB-C22092 | ROB-C25092 | ROB-C27092 | ROB-C30092 |
| .1250 | ROB-C20125 | ROB-C22125 | ROB-C25125 | ROB-C27125 | ROB-C30125 |
| .1562 | ROB-C20156 | ROB-C22156 | ROB-C25156 | ROB-C27156 | ROB-C30156 |
| .1875 | ROB-C20187 | ROB-C22187 | ROB-C25187 | ROB-C27187 | ROB-C30187 |
| .2500 | ROB-C20250 | ROB-C22250 | ROB-C25250 | ROB-C27250 | ROB-C30250 |
