ER 20 Coolant Collets

Accu-Collets & Lyndex ER COLLETS

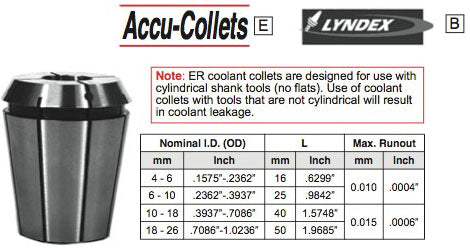

ER INCH & METRIC COOLANT COLLETS
  • Unique patented design is solid steel construction ensuring longer life.
  • No discs, plugs or other hardware needed.
  • Accu-Collets have rubber plugs
  • Maximum pressure of 1000 psi.
  • Drill insertion does not need to be longer than the collet length.
  • Lyndex coolant style ER collets feature a unique patented design which staggers the slots to prevent coolant from reaching the face of the collet.
Note ER coolant collets are designed for use with cylindrical shank tools (no flats). Use of coolant collets with tools that are not cylindrical will result in coolant leakage.
Accu-Collets Lyndex
Frac MM Dec.
- 3.0 0.1180 20-0118-3.0C
-
1/8 - 0.1250 20-0125-1/8C
-
5/32 - 0.1560 20-0156-5/32C
-
- 4.0 0.1570 20-0157-4.0C
-
3/16 - 0.1870 20-0187-3/16C
20-0187-3/16CL
- 5.0 0.1960 20-0196-5.0C
20-0196-5.0CL
7/32 - 0.2180 20-0218-7/32C
20-0218-7/32CL
- 6.0 0.2360 20-0236-6.0C
20-0236-6.0CL
1/4 - 0.2500 20-0250-1/4C
20-0250-1/4CL
- 7.0 0.2750 20-0275-7.0C
20-0275-7.0CL
9/32 - 0.2810 20-0281-9/32C
20-0281-9/32CL
5/16 - 0.3120 20-0312-5/16C
20-0312-5/16CL
- 8.0 0.3150 20-0315-8.0C
20-0315-8.0CL
11/32 - 0.3430 20-0343-11/32C
20-0343-11/32CL
- 9.0 0.3540 20-0354-9.0C
20-0354-9.0CL
3/8 - 0.3750 20-0375-3/8C
20-0375-3/8CL
- 10.0 0.3930 20-0393-10.0C
20-0393-10.0CL
13/32 - 0.4060 20-0406-13/32C
20-0406-13/32CL
- 11.0 0.4330 20-0433-11.0C
20-0433-11.0CL
7/16 - 0.4370 20-0437-7/16C
20-0437-7/16CL
15/32 - 0.4680 20-0468-15/32C
20-0468-15/32CL
- 12.0 0.4720 20-0472-12.0C
20-0472-12.0CL
1/2 - 0.5000 20-0500-1/2C
20-0500-1/2CL
- 13.0 0.5110 20-0511-13.0C
20-0511-13.0CL
