ER 40 Coolant Collets

Accu-Collets & Lyndex ER COLLETS
ER INCH & METRIC COOLANT COLLETS
  • Unique patented design is solid steel construction ensuring longer life.
  • No discs, plugs or other hardware needed.
  • Accu-Collets have rubber plugs
  • Maximum pressure of 1000 psi.
  • Drill insertion does not need to be longer than the collet length.
  • Lyndex coolant style ER collets feature a unique patented design which staggers the slots to prevent coolant from reaching the face of the collet.

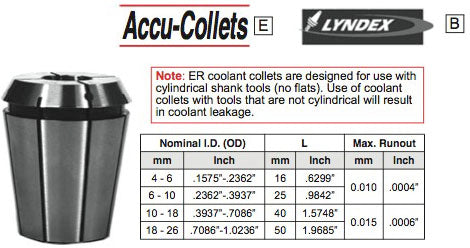

Note ER coolant collets are designed for use with cylindrical shank tools (no flats). Use of coolant collets with tools that are not cylindrical will result in coolant leakage.
Accu-Collets Lyndex
Frac MM Dec.
5/32 - 0.1560 40-0156-5/32C
-
- 4.0 0.1570 40-0157-4.0C
-
3/16 - 0.1870 40-0187-3/16C
-
- 5.0 0.1960 40-0196-5.0C
-
7/32 - 0.2180 40-0218-7/32C
-
- 6.0 0.2360 40-0236-6.0C
-
1/4 - 0.2500 40-0250-1/4C
-
- 7.0 0.2750 40-0275-7.0C
-
9/32 - 0.2810 40-0281-9/32C
-
5/16 - 0.3120 40-0312-5/16C
-
- 8.0 0.3150 40-0315-8.0C
-
11/32 - 0.3430 40-0343-11/32C
-
- 9.0 0.3540 40-0354-9.0C
-
3/8 - 0.3750 40-0375-3/8C
-
- 10.0 0.3930 40-0393-10.0C
40-0393-10.0CL
13/32 - 0.4060 40-0406-13/32C
-
- 11.0 0.4330 40-0433-11.0C
40-0433-11.0CL
7/16 - 0.4370 40-0437-7/16C
-
15/32 - 0.4680 40-0468-15/32C
-
- 12.0 0.4720 40-0472-12.0C
40-0472-12.0CL
1/2 - 0.5000 40-0500-1/2C
-
- 13.0 0.5110 40-0511-13.0C
40-0511-13.0CL
17/32 - 0.5310 40-0531-17/32C
-
- 14.0 0.5510 40-0551-14.0C
40-0551-14.0CL
9/16 - 0.5620 40-0562-9/16C
-
- 15.0 0.5900 40-0590-15.0C
40-0590-15.0CL
19/32 - 0.5930 40-0593-19/32C
-
5/8 - 0.6250 40-0625-5/8C
-
- 16.0 0.6300 40-0630-16.0C
40-0630-16.0CL
21/32 - 0.6560 40-0656-21/32C
-
- 17.0 0.6690 40-0669-17.0C
40-0669-17.0CL
11/16 - 0.6870 40-0687-11/16C
-
- 18.0 0.7080 40-0708-18.0C
40-0708-18.0CL
23/32 - 0.7180 40-0718-23/32C
-
- 19.0 0.7480 40-0748-19.0C
40-0748-19.0CL
3/4 - 0.7500 40-0750-3/4C
-
25/32 - 0.7810 40-0781-25/32C
-
- 20.0 0.7870 40-0787-20.0C
40-0787-20.0CL
13/16 - 0.8120 40-0812-13/16C
-
- 21.0 0.8260 40-0826-21.0C
40-0826-21.0CL
27/32 - 0.8430 40-0843-27/32C
-
- 22.0 0.8660 40-0866-22.0C
40-0866-22.0CL
7/8 - 0.8750 40-0875-7/8C
-
- 23.0 0.9050 40-0905-23.0C
40-0905-23.0CL
29/32 - 0.9060 40-0906-29/32C
-
15/16 - 0.9370 40-0937-15/16C
-
- 24.0 0.9440 40-0944-24.0C
40-0944-24.0CL
31/32 - 0.9680 40-0968-31/32C
-
- 25.0 0.9840 40-0984-25.0C
40-0984-25.0CL
1 - 1.0000 40-1000-1-INC
-
- 26.0 1.0236 40-1024-26.0C
40-1024-26.0CL
