Milling Cutters - Using TP_ _ 22/32 Inserts

MILLING CUTTERS
Using TP_ _ 22/32 Inserts
Prices are pulled from our database in real time. Press Add button to see product price.

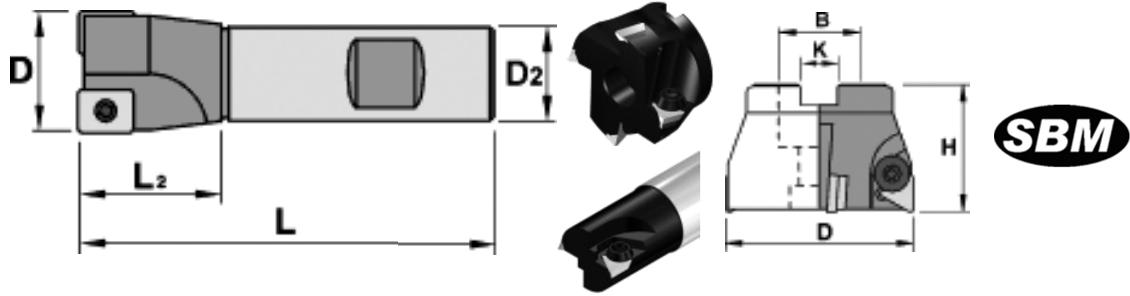

SHELL MILLS
D H K B z
Uses
Insert		 Cutting
Dia		 Height Key
Width		 Shank
Dia		 No Of
Flutes		 Reference Part Number Clamp
Screw		 Wrench Clamp
TP_ _32 1.5 1.75 0.250 0.50 3 0130.90.0150 SM-TP32-15-C
CA-1006 CA-5004 CA-2064
TP_ _32 2.0 1.75 0.312 0.75 4 0130.90.0200 SM-TP32-40-C
TP_ _32 2.5 2.00 0.375 1.00 4 0130.90.0250 SM-TP32-25-C
TP_ _32 3.0 2.00 0.375 1.00 5 0130.90.0300 SM-TP32-30-C
TP_ _32 4.0 2.00 0.500 1.25 6 0130.90.0400 SM-TP32-40-C

END MILLS
D D2 L L2 z
Uses
Insert		 Cutting
Dia		 Height Key
Width		 Shank
Dia		 No Of
Flutes		 Reference Part Number Screw Wrench Clamp
TP_ _22 0.75 0.75 3.50 1.25 2 0120.21.0075 EM-TP22-75-35C
CA-1005 CA-5025 CA-2010
TP_ _22 1.00 1.00 3.50 1.25 2 0120.21.0100 EM-TP22-10-35C
TP_ _32 1.00 1.00 3.50 1.25 2 0130.21.0100 EM-TP32-10-35C
CA-1016 CA-5004 CA-2064
TP_ _32 1.25 1.00 3.75 1.25 2 0130.21.0125 EM-TP32-12-37C
TP_ _32 1.50 1.25 4.00 1.25 3 0130.21.0150 EM-TP32-15-40C

INSERTS
GRADE
Inch No Metric No AH120 T3030 T325 NS540 TH10 UX30
TPU221 TPMN110304 - - - TO-3076
TO-3078
TO-3079
TPU222 TPMN110308 - - TO-3081
- TO-3083
TO-3084
TPU321 TPMN160304 TO-3085
TO-8023
TO-3087
- TO-3089
TO-3090
TPU322 TPMN160308 TO-3091
- TO-3093
TO-3097
TO-3095
TO-3096
