Tungaloy Style 90° Milling Cutters
TUNGALOY® STYLE
90° MILLING CUTTERS
High Positive Design Free Cutting Excellent Chip Control Prices are pulled from our database in real time. Press Add button to see product price.
INSERTS Prices are pulled from our database in real time. Press Add button to see product price.

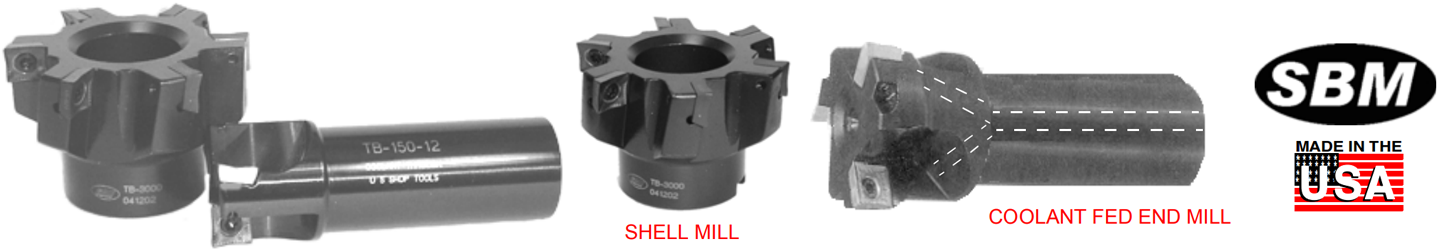

90° MILLING CUTTERS
High Positive Design Free Cutting Excellent Chip Control Prices are pulled from our database in real time. Press Add button to see product price.
Milling Cutter | Extra Screws | |||||
Description | Dia. | Shank Dia. |
No. Of Teeth |
Part Number | Extra Screw | Wrench [C] |
ENDMILLS | 1.00 | 0.75 | 1 | TB-100-75 | SC-01 | TX-20F Flag Style
TX-20S Screwdriver Style |
1.00 | 1.00 | 1 | TB-100-10 | |||
1.25 | 1.00 | 2 | TB-120-10 | |||
1.25 | 1.25 | 2 | TB-120-12 | |||
1.50 | 1.25 | 3 | TB-150-12 | |||
2.00 | 1.25 | 4 | TB-200-12 | |||
SHELL MILLS | 2.00 | 0.75 | 4 | TB-2000 | SC-01 | |
2.00 | 0.75 | 5 | TB-2005 | |||
3.00 | 1.00 | 6 | TB-3000 | SC-02 | ||
4.00 | 1.25 | 7 | TB-4000 |
INSERTS Prices are pulled from our database in real time. Press Add button to see product price.

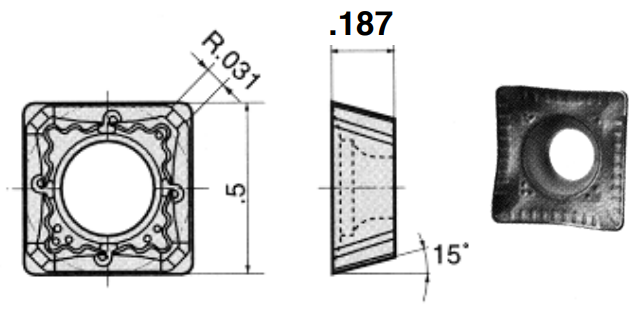

INSERTS FOR TB MILLING CUTTERS | |||
MATERIAL | Reference Number | Polished | Coated |
For Aluminum, Copper, Brass | SDGT1204PDFR-AJ-TH10 | US-820 | - |
For Mild Steel, Stainless Steel, Super Alloys | SDMT1204PDPR-ML-AH120 | - | US-821 |
For Alloy Steels, Die Steels, Cast Iron | SDMT1204PDSR-MJ-AH120 | - | US-822 |
RECOMMENDED CUTTING CONDITIONS | |||||
Work Materials |
Recommended Grade |
Roughing | Finishing | ||
sfm | ipt | sfm | ipt | ||
Mild Steels | US-821 | 400~800 | 0.002~0.008 | 450~825 | 0.002~0.008 |
Alloy Steels | US-822 | 300~700 | 0.002~0.008 | 300~800 | 0.002~0.010 |
Stainless Steels | US-821 | 300~600 | 0.002~0.005 | 300~700 | 0.002~0.008 |
Die Steels | US-822 | 300~500 | 0.002~0.008 | 300~600 | 0.002~0.008 |
Cast Irons | US-822 | 300~800 | 0.004~0.007 | 300~800 | 0.004~0.008 |
Super Alloys | US-821 | 100~200 | 0.002~0.006 | 125~225 | 0.002~0.006 |
Aluminum Alloys | US-820 | 800~2500 | 0.004~0.014 | 1500~3300 | 0.002~0.008 |
