Machinable Fixture Clamps
These clamps with the machinable steel washers provide more flexibility for holding round or unusual shape parts. Parts can be held directly to the fixture plate surface or elevated for through drilling. A special screw is provided with each package to hold the washer in the proper place during machining.
- Low Profile
- Made of mild steel for machinability
- One machining screw included with each package

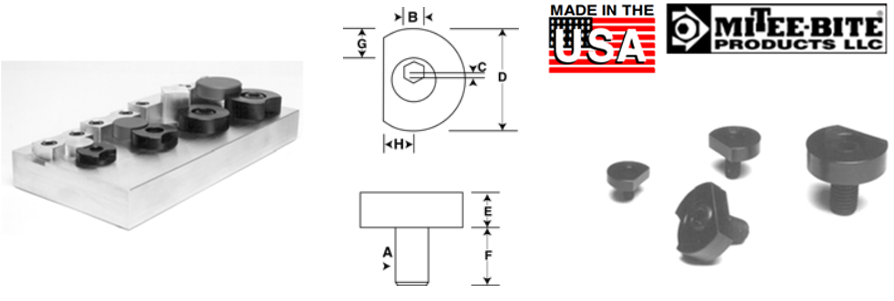

| A | B | C | D | E | F | G* | H† | Max. Holding Force | Pkg Qty | Part Number |
| 1/4-20 3/8-16 |
1/8 3/16 |
.040 .050 |
.980 1.23 |
.250 .350 |
.470 .710 |
.250 .275 |
.308 .400 |
800 lbs. 2000 lbs. |
4 4 |
MITEE-10504
MITEE-10506 |
| 1/2-13 5/8-11 |
5/16 3/8 |
.100 .100 |
1.48 1.73 |
.450 .550 |
.900 1.125 |
.300 .350 |
.500 .590 |
4000 lbs. 6000 lbs. |
4 4 |
MITEE-10508
MITEE-10510 |
| * “G” is the amount of machinable stock. † “H” is the distance from edge of workpiece to drill & tap hole | ||||||||||
