MULTI-FIXTURE CLAMPS AND STOPS
The MITEE-BITE Multi-Fixture Clamp offers increased versatility through its unique riser clamp design.

• Provides flexible set ups for hard to hold parts
• Works in both plates with tapped hole layouts or T-slot configurations.
• Can be mounted vertically or horizontally.
• Stops locate workpiece for repeat positioning.
• Larger sizes are ideal for mold shop applications.
• Tapered mounting slot prevents movement when clamping pressure is applied.
• Steps, as well as end faces of flat stops, are precision ground.

Prices are pulled from our database in real time. Press Add button to see product price.

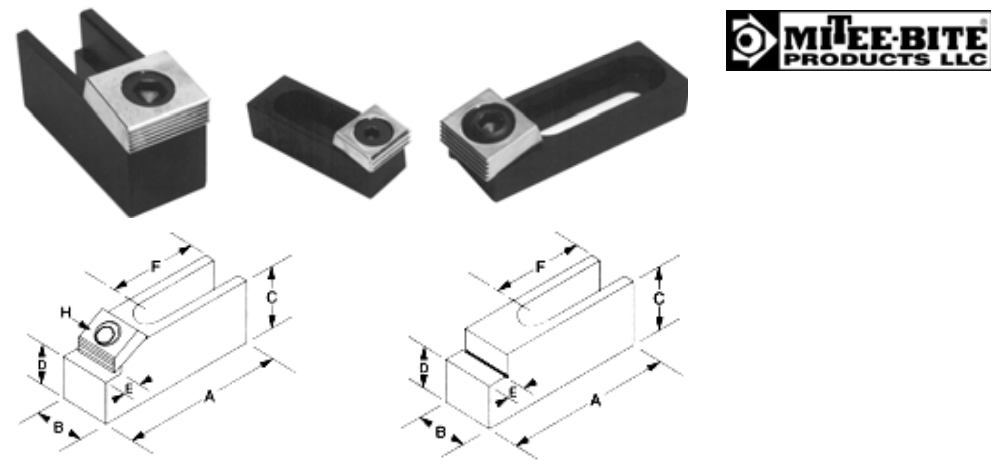

Item	A	B	C	D +.0000 - .0005	E	F	G	H Cam Screw	Mounting Screw	Slot	Part Number
Clamp Stop	2.5 2.5	0.75 0.75	0.62 0.75	0.460 0.460	0.31 0.31	0.83 1.11	0.53 0.53	MB-6 NA	5/16 5/16	Closed Closed	MITEE-23140 Add MITEE-23180 Add
Clamp Stop	3.75 3.75	1.12 1.12	0.62 0.87	0.480 0.480	0.37 0.37	1.68 1.68	0.50 0.50	MB-8 NA	1/2 1/2	Closed Closed	MITEE-23150 Add MITEE-23200 Add
Clamp Stop	2.16 2.2	0.75 0.75	0.62 0.75	NA NA	NA NA	0.83 1.11	0.53 0.53	MB-6 NA	5/16 5/16	Closed Closed	MITEE-23145 Add MITEE-23148 Add
