MS-C Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder
(valve and switch brackets included)
  • Built-in safty check valves and detective plate.
  • The proximity switches are extra option.
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Pull Side
84 79 29 (2957) 20 4.0(40.8) 6000 0.0125 7.6 0.8 MS105C
Call or Email
120 113 42 (4283) 25 4.0(40.8) 6000 0.022 10.5 0.8 MS125C
Call or Email
120 113 42 (4283) 35 4.0(40.8) 6000 0.022 10.5 0.8 MS125C35
Call or Email
174 160 60 (6118) 30 4.0(40.8) 5500 0.047 14 0.8 MS150C
Call or Email
312 290 108 (11013) 35 4.0(40.8) 5500 0.097 22.5 0.8 MS200C
Call or Email

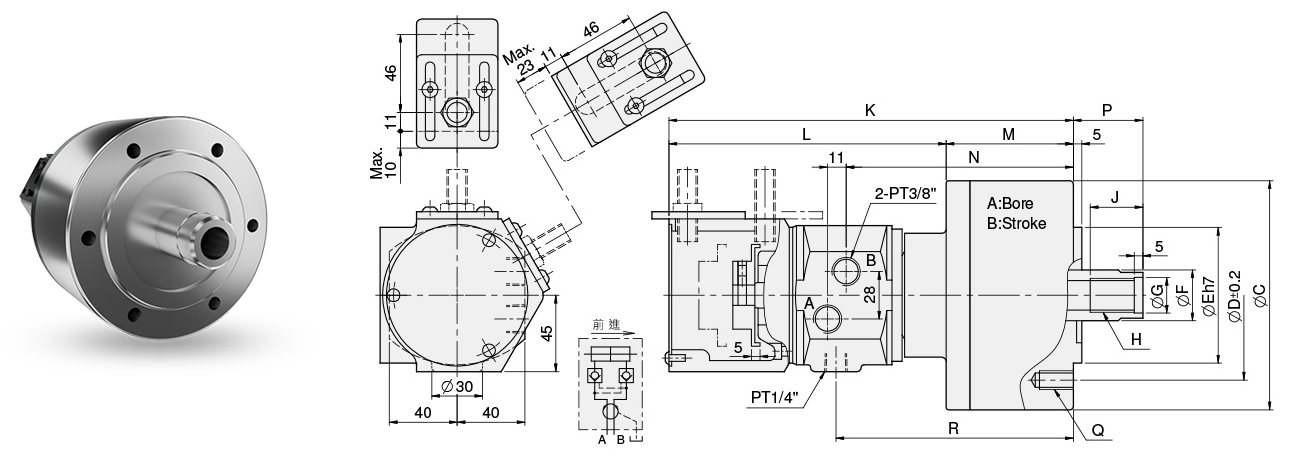

A B C D E F G H J K L M N P
max.
P
min.
Q R S T DIM Part Number Price Each
105 20 135 100 80 30 21 M20x2.5 35 257 168 89 152 45 25 6-M10x20 158 23 46 MS105C Call or Email
125 25 160 130 110 35 25 M24x3.0 44 265 168 97 160 51 26 6-M12x24 166 23 46 MS125C Call or Email
125 35 160 130 110 35 25 M24x3.0 44 269 168 101 164 57 22 6-M12x24 170 23 46 MS125C35 Call or Email
150 30 190 130 110 45 31 M30x3.5 45 274 168 106 169 56 26 12-M12x24 175 23 46 MS150C Call or Email
200 35 245 145 120 55 37 M36x4.0 60 288 166 122 183 69 34 12-M16x30 189 28 46 MS200C Call or Email
Draw bar pull force : Pressure 4.0 MPa(40.8kgf / cm²)
Total leakage : Pressure 3.0 MPa(30.6kgf / cm²) and oil temperature 50°C
Proximity switch : Model BESS 16-329-E4-Y (BALLUFF) DC 12 / 24V 200mA NPN
