TOOLFLO - T-Series Laydown Threading Holders

INTERNAL & EXTERNAL THREADING HOLDERS
Prices are pulled from our database in real time. Press Add button to see product price.

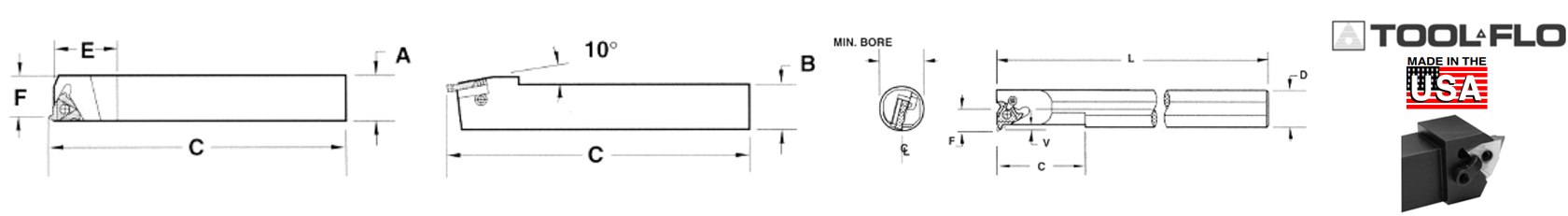

T SERIES LAYDOWN EXTERNAL THREADING HOLDERS
For Use With
Holder		 Left or
Right		 A B C E F Part Number
16ER RIGHT 0.75 0.75 5 1.20 0.75 T-AL075-3R
RIGHT 1.00 1.00 6 1.20 1.00 T-AL100-3R
22ER RIGHT 1.00 1.00 6 1.42 1.00 T-AL100-4R
22EL LEFT 1.00 1.00 6 1.42 1.00 T-AL100-4L
27ER RIGHT 1.25 1.25 7 1.57 1.25 T-AL125-5R

T SERIES LAYDOWN INTERNAL THREADING HOLDERS
For Use With
Holder		 Left or
Right		 Min Bore
For Boring Bars		 C D F L Part Number
16NR RIGHT 0.625 2.50 0.63 0.312 7 T-NVR625-3R
RIGHT 0.95 2.75 0.75 0.51 7 T-AVR750-3R
RIGHT 1.15 3.00 1.00 0.64 10 T-AVR100-3R
RIGHT 1.40 3.00 1.25 0.77 10 T-AVR125-3R
RIGHT 1.70 3.00 1.50 0.90 12 T-AVR150-3R
22NR RIGHT 1.10 2.75 0.75 0.61 7 T-NVR750-4R
RIGHT 1.20 3.00 1.00 0.71 10 T-AVR100-4R
