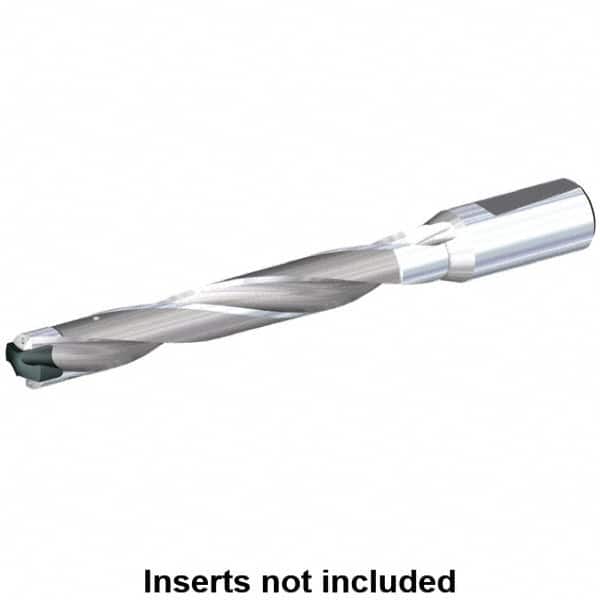

Kennametal - 17 to 17.5mm Diam, 7xD, 126mm Max Depth, 20mm Shank Diam, 147mm Flute, 202mm OAL, Replaceable Tip Drill - KSEM1700 Insert, 1 Seat Size, Series KSEM
Item #: 00968735
Brand: Kennametal
Model #: 1279857
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.6890 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 126.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KSEM1700 |
| Insert Seat Size | 1 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.70 |
| Flute Length (mm) | 147.00 |
| Flute Length (Decimal Inch) | 5.7874 |
| Overall Length (mm) | 202.00 |
| Shank Length (mm) | 50.00 |
