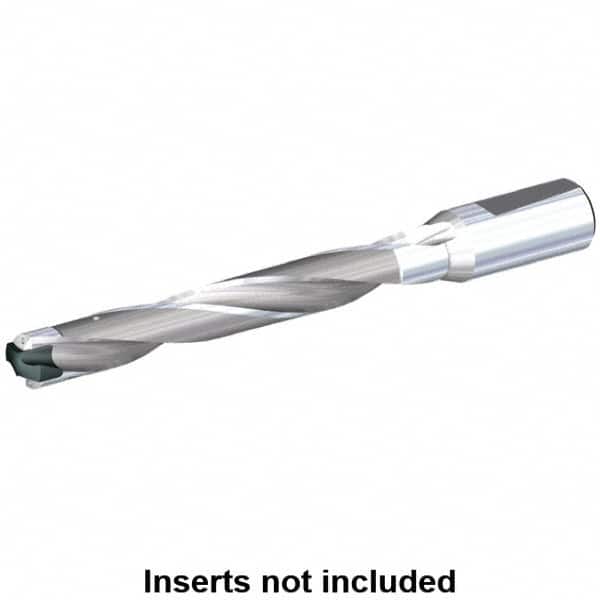

Kennametal - 21.5 to 22mm Diam, 7xD, 154mm Max Depth, 63/64" Shank Diam, 180mm Flute, 241mm OAL, Replaceable Tip Drill - KSEM2150 Insert, 3 Seat Size, Series KSEM
Item #: 00968826
Brand: Kennametal
Model #: 1279873
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 21.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.8465 |
| Maximum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8661 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 154.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM2150 |
| Insert Seat Size | 3 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.40 |
| Flute Length (mm) | 180.00 |
| Flute Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 241.00 |
| Shank Length (mm) | 56.00 |
