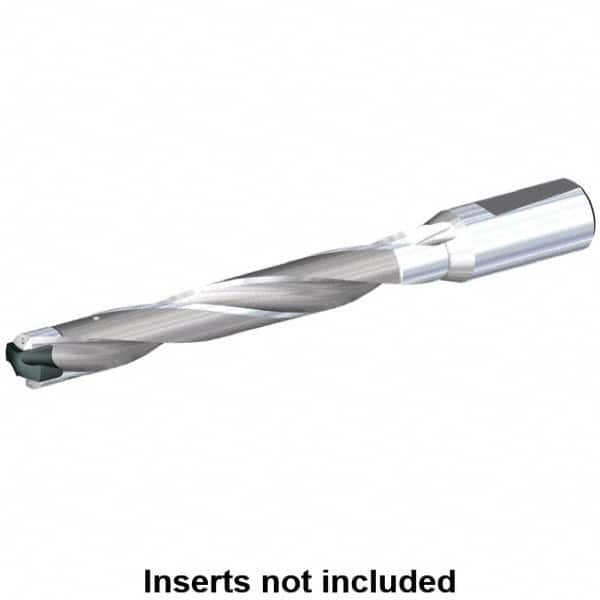

Kennametal - 25.5 to 26mm Diam, 7xD, 182mm Max Depth, 32mm Shank Diam, 213mm Flute, 278mm OAL, Replaceable Tip Drill - KSEM2550 Insert, 5 Seat Size, Series KSEM
Item #: 00968891
Brand: Kennametal
Model #: 1279892
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 25.50 |
| Minimum Drill Diameter (Decimal Inch) | 1.0039 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 182.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2550 |
| Insert Seat Size | 5 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.90 |
| Flute Length (mm) | 213.00 |
| Flute Length (Decimal Inch) | 8.3858 |
| Overall Length (mm) | 278.00 |
| Shank Length (mm) | 60.00 |
