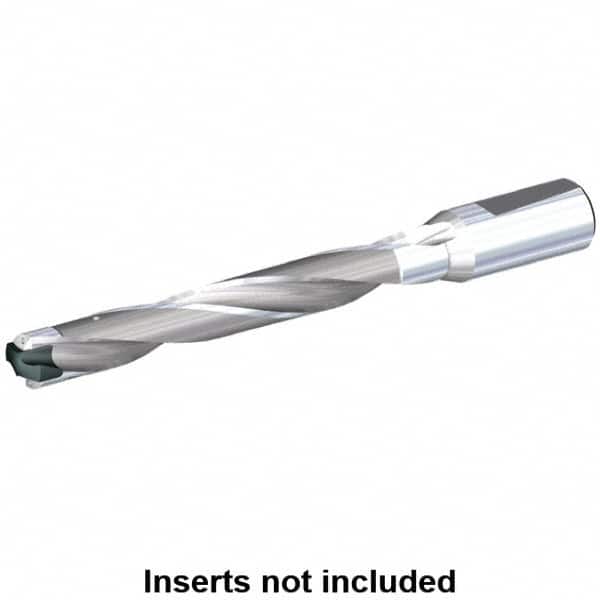

Kennametal - 14.51 to 15mm Diam, 7xD, 112mm Max Depth, 20mm Shank Diam, 132mm Flute, 186mm OAL, Replaceable Tip Drill - KSEM1451 Insert, A Seat Size, Series KSEM
Item #: 00969162
Brand: Kennametal
Model #: 1797203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 14.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.5713 |
| Maximum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5906 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 112.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KSEM1451 |
| Insert Seat Size | A |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.30 |
| Flute Length (mm) | 132.00 |
| Flute Length (Decimal Inch) | 5.1969 |
| Overall Length (mm) | 186.00 |
| Shank Length (mm) | 50.00 |
