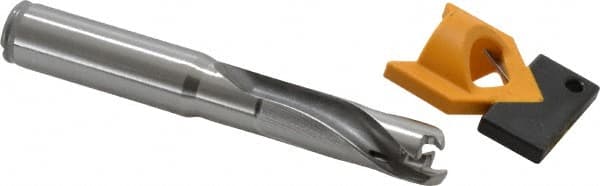

Kennametal - 14.5 to 14.99mm Diam, 3xD, 44.96mm Max Depth, 5/8" Shank Diam, 59.44mm Flute, 114.3mm OAL, Replaceable Tip Drill - KTIP05774HP Insert, S Seat Size, Series KenTIP
Item #: 01243385
Brand: Kennametal
Model #: 2250729
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 14.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
| Maximum Drill Diameter (mm) | 14.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5902 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Maximum Drill Depth (mm) | 44.96 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | KTIP05774HP |
| Insert Seat Size | S |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 59.44 |
| Flute Length (Decimal Inch) | 2.3402 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
