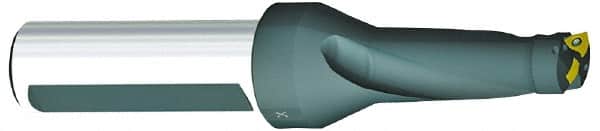

Kennametal - 5-3/4" Max Drill Depth, 4xD, 1.4374" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 01244227
Brand: Kennametal
Model #: 1522101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (Decimal Inch) | 1.4374 |
| Maximum Drill Depth (Inch) | 5-3/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 6.62x3.75 |
| Insert Size (Decimal Inch) | 0.2600x0.1480 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5630 |
| Maximum Drill Diameter (mm) | 39.69 |
| Overall Length/Projection (mm) | 193.68 |
| Overall Length/Projection (Decimal Inch) | 7.6252 |
| Insert Compatibility | DFT 06T308 |
| Body Length (Decimal Inch) | 7.6300 |
| Body Length (mm) | 193.68 |
| Shank Length (mm) | 95.25 |
| Shank Length (Decimal Inch) | 3.7500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
