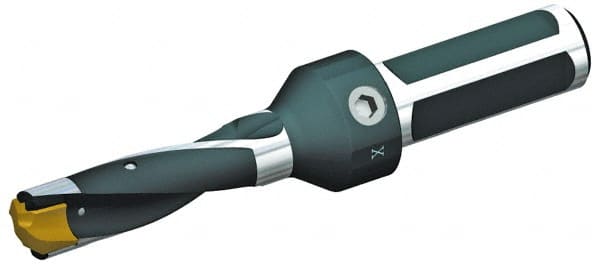

Kennametal - 24.61 to 25.11mm Diam, 3xD, 77.98mm Max Depth, 1" Shank Diam, 108.97mm Flute, 206.38mm OAL, Replaceable Tip Drill - KSEM0969 Insert, 5 Seat Size, Series KSEM
Item #: 02734945
Brand: Kennametal
Model #: 1613652
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 24.61 |
| Minimum Drill Diameter (Decimal Inch) | 0.9689 |
| Maximum Drill Diameter (mm) | 25.11 |
| Maximum Drill Diameter (Decimal Inch) | 0.9886 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.0700 |
| Maximum Drill Depth (mm) | 77.98 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM0969 |
| Insert Seat Size | 5 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1500 |
| Flute Length (mm) | 108.97 |
| Flute Length (Decimal Inch) | 4.2902 |
| Overall Length (mm) | 206.38 |
| Overall Length (Decimal Inch) | 8.1252 |
| Shank Length (Decimal Inch) | 3.0000 |
