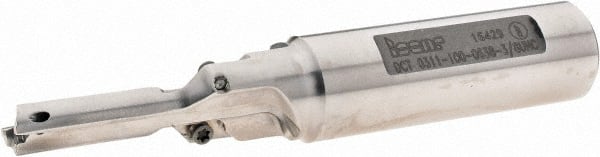

Iscar - 0.303 to 0.353" Diam, 1" Max Depth, 5/8" Shank Diam, 3.69" OAL, Replaceable Tip Drill - AOMT, IDI-SG, IDI-SK Insert, DCT Toolholder, Series ChamDrill
Item #: 03889805
Brand: Iscar
Model #: 3200996
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.3030 |
| Maximum Drill Diameter (Decimal Inch) | 0.3530 |
| Maximum Drill Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | AOMT; IDI-SG; IDI-SK |
| Toolholder Style | DCT |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 1.8000 |
| Overall Length (Decimal Inch) | 3.6900 |
| Shank Length (Decimal Inch) | 1.8900 |
