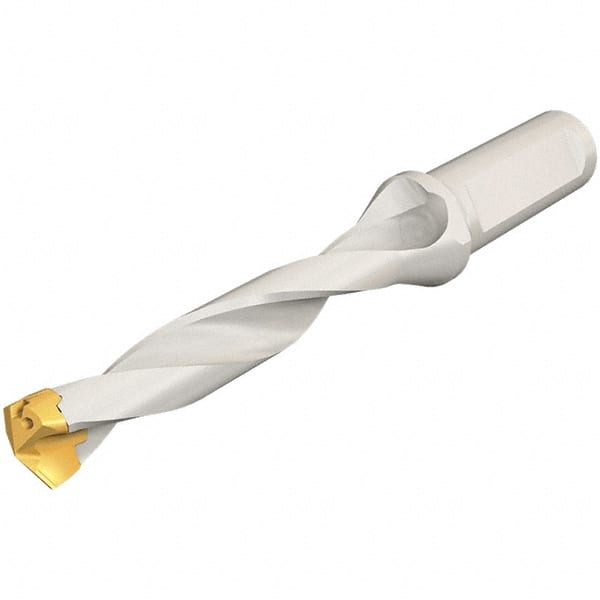

Iscar - 10 to 10.9mm Diam, 5xD, 50mm Max Depth, 16mm Shank Diam, Replaceable Tip Drill - 10 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 05182936
Brand: Iscar
Model #: 3201107
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (mm) | 10.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Seat Size | 10 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 66.00 |
| Shank Length (mm) | 48.00 |
