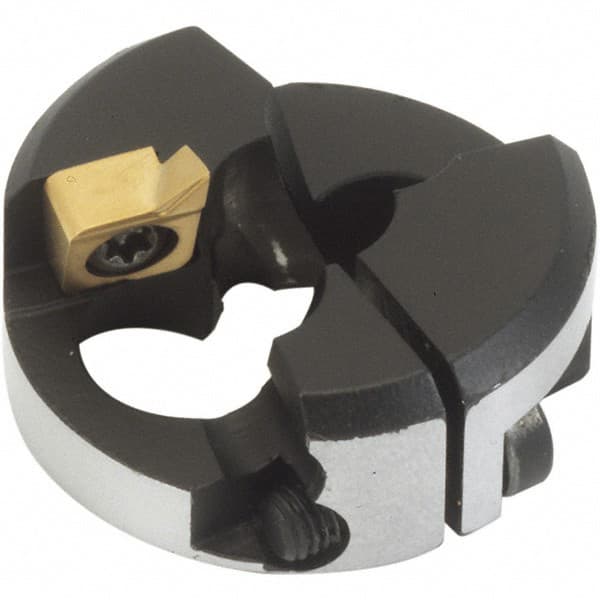

Iscar - Series ChamDrill, 19mm ID, 50mm Overall Diam Drilling Chamfer Ring - XOGX-DT Insert, 45° Chamfer, 1 Insert
Item #: 06002257
Brand: Iscar
Model #: 4304733
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Inside Diameter (mm) | 19.00 |
| Inside Diameter (Decimal Inch) | 0.7480 |
| Overall Diameter (mm) | 50.00 |
| Overall Diameter (Decimal Inch) | 1.9685 |
| Insert Style | XOGX-DT |
| Chamfer Angle | 45 |
| Number of Chamfer Ring Inserts | 1 |
