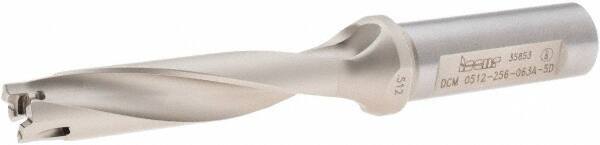

Iscar - 0.512 to 0.528" Diam, 5xD, 2.56" Max Depth, 5/8" Shank Diam, 5.13" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 06646079
Brand: Iscar
Model #: 3200480
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (Decimal Inch) | 0.5280 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.5600 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 3.2400 |
| Overall Length (Decimal Inch) | 5.1300 |
| Shank Length (Decimal Inch) | 1.8900 |
