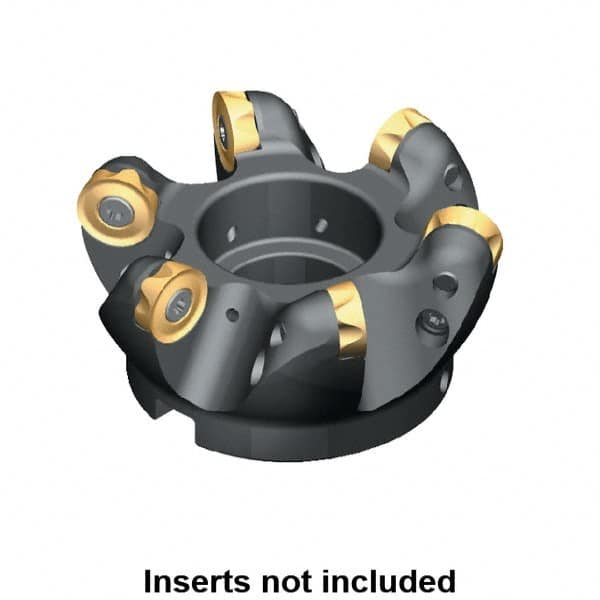

Kennametal - 3" Cut Diam, 3/8" Max Depth, 1" Arbor Hole, 5 Inserts, RCGT 64... Insert Style, Indexable Copy Face Mill - BMD300 Cutter Style, 22,000 Max RPM, 2" High, Series BMD
Item #: 06802573
Brand: Kennametal
Model #: 2610670
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | BMD |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RCGT 64... |
| Cutter Style | BMD300 |
| Maximum RPM | 22000 |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
