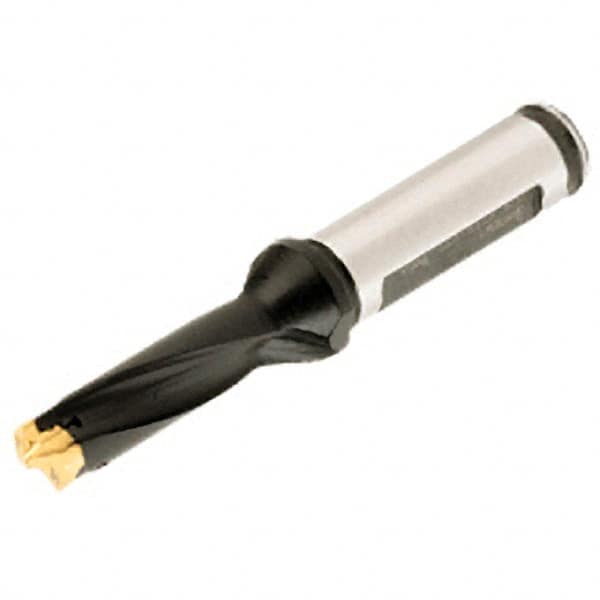

Iscar - 12 to 12.4mm Diam, 3xD, 36mm Max Depth, 16mm Shank Diam, 100.2mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07631013
Brand: Iscar
Model #: 3200444
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.4882 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.4173 |
| Maximum Drill Depth (mm) | 36.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 52.20 |
| Body Length (Decimal Inch) | 2.0551 |
| Overall Length (mm) | 100.20 |
| Overall Length (Decimal Inch) | 3.9449 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
