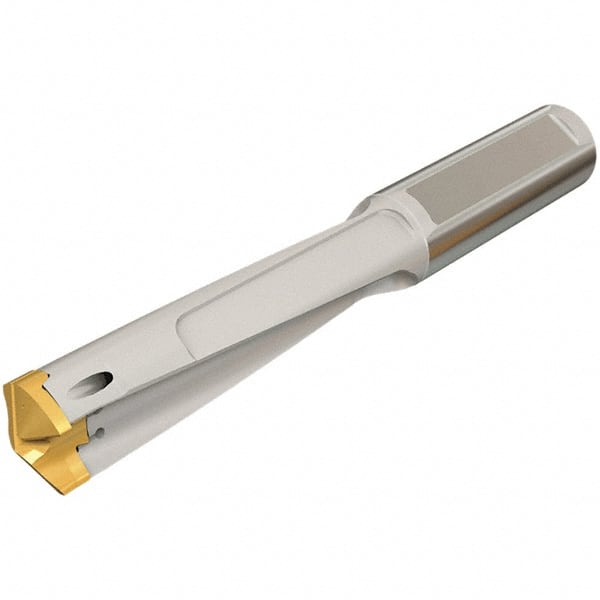

Iscar - 15.01 to 15.9mm Diam, 3.5xD, 52.07mm Max Depth, 15.01mm Shank Diam, 107.95mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series UniChamDrill
Item #: 07638505
Brand: Iscar
Model #: 3200983
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 15.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (mm) | 15.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0500 |
| Maximum Drill Depth (mm) | 52.07 |
| Shank Diameter (mm) | 15.01 |
| Shank Diameter (Decimal Inch) | 0.5910 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 62.99 |
| Body Length (Decimal Inch) | 2.4800 |
| Overall Length (mm) | 107.95 |
| Overall Length (Decimal Inch) | 4.2500 |
| Shank Length (mm) | 44.96 |
| Shank Length (Decimal Inch) | 1.7700 |
