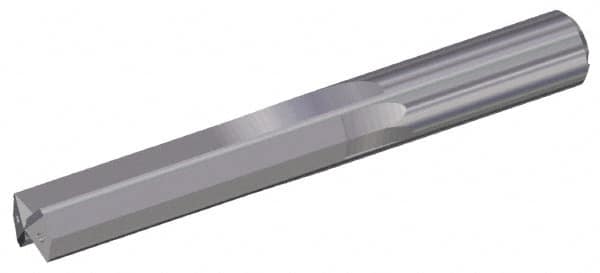

Kennametal - Straight-Flute & Die Drill Bits; Drill Bit Type: Straight-Flute Drill Bit ; Drill Point Angle: 130 ; Drill Bit Size (Inch): 27/64 ; Drill Bit Size (Decimal): 0.4200 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: Bright
Item #: 08000564
Brand: Kennametal
Model #: 1201042
Product Specifications
Straight-Flute & Die Drill Bits; Drill Bit Type: Straight-Flute Drill Bit ; Drill Point Angle: 130 ; Drill Bit Size (Inch): 27/64 ; Drill Bit Size (Decimal): 0.4200 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: Bright
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 130 |
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (Decimal) | 0.4200 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 4.3700 |
| Overall Length (Inch) | 4.3700 |
| Through Coolant | Yes |
| Flute Length (Decimal Inch) | 2.6200 |
| Flute Length (Inch) | 2.6200 |
| Number of Flutes | 2 |
| Point Type | Split Point |
| Maximum Drilling Depth (Decimal Inch) | 2.09 |
| Shank Length (Decimal Inch) | 1.6732 |
| Specification Designation | DIN |
| Drill Point Length (Decimal Inch) | 0.0980 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Specification Number | DIN 6537L |
| Material Grade | KF1 |
| Drill Bit Grade | Dynapoint High Performance |
| Series/List | K411 |
