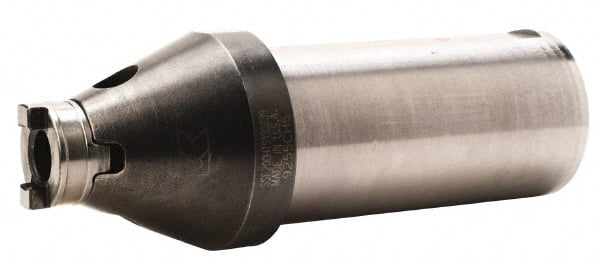

Kennametal - Series HTS, Head Connection 16, 2" Diam Weldon Flat Shank, Drill Body - 10.14" Body Length to Flange, SSF Toolholder, 32mm Nose Diam, 410.05mm OAL, Through Coolant
Item #: 09094640
Brand: Kennametal
Model #: 1801539
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 16 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 10.1400 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| Overall Length (mm) | 410.05 |
| Overall Length (Decimal Inch) | 16.1400 |
| Gage Length (mm) | 308.45 |
| Gage Length (Decimal Inch) | 12.1400 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.0000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 2 |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
