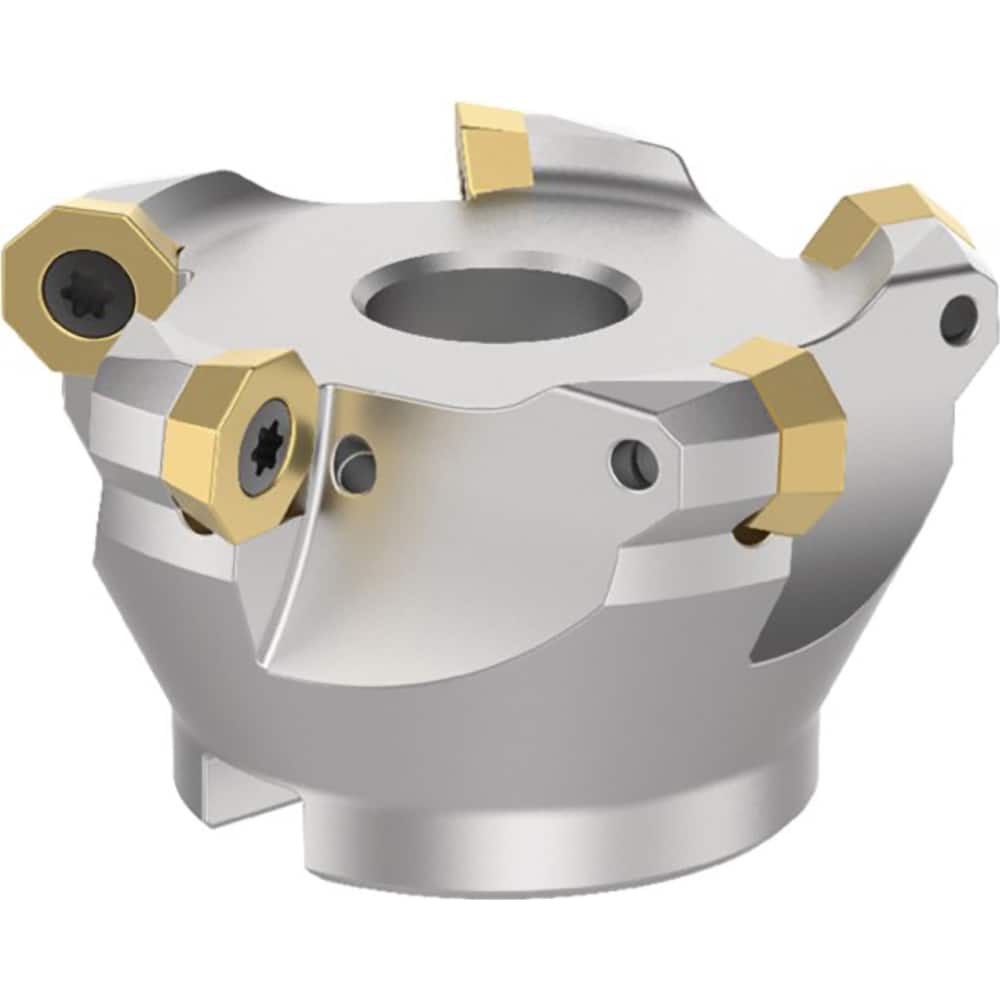

Kennametal - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Inch): 3.1500 ; Arbor Hole Diameter (mm): 27.00 ; Lead Angle: 42 ; Overall Height (mm): 50.00000 ; Insert Compatibility: OD
Item #: 11330792
Brand: Kennametal
Model #: 5673813
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Inch): 3.1500 ; Arbor Hole Diameter (mm): 27.00 ; Lead Angle: 42 ; Overall Height (mm): 50.00000 ; Insert Compatibility: OD
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Inch) | 3.1500 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 42 |
| Overall Height (mm) | 50.00000 |
| Insert Compatibility | OD |
| Series | 7745VOD04 |
| Through Coolant | Through Coolant |
| Maximum Depth of Cut (mm) | 8.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw Clamping |
| Number of Flutes | 9 |
| Hub Diameter (mm) | 65.000 |
| Maximum RPM | 20000.000 |
| ISO Number | 7745VOD04-A080Z9R |
