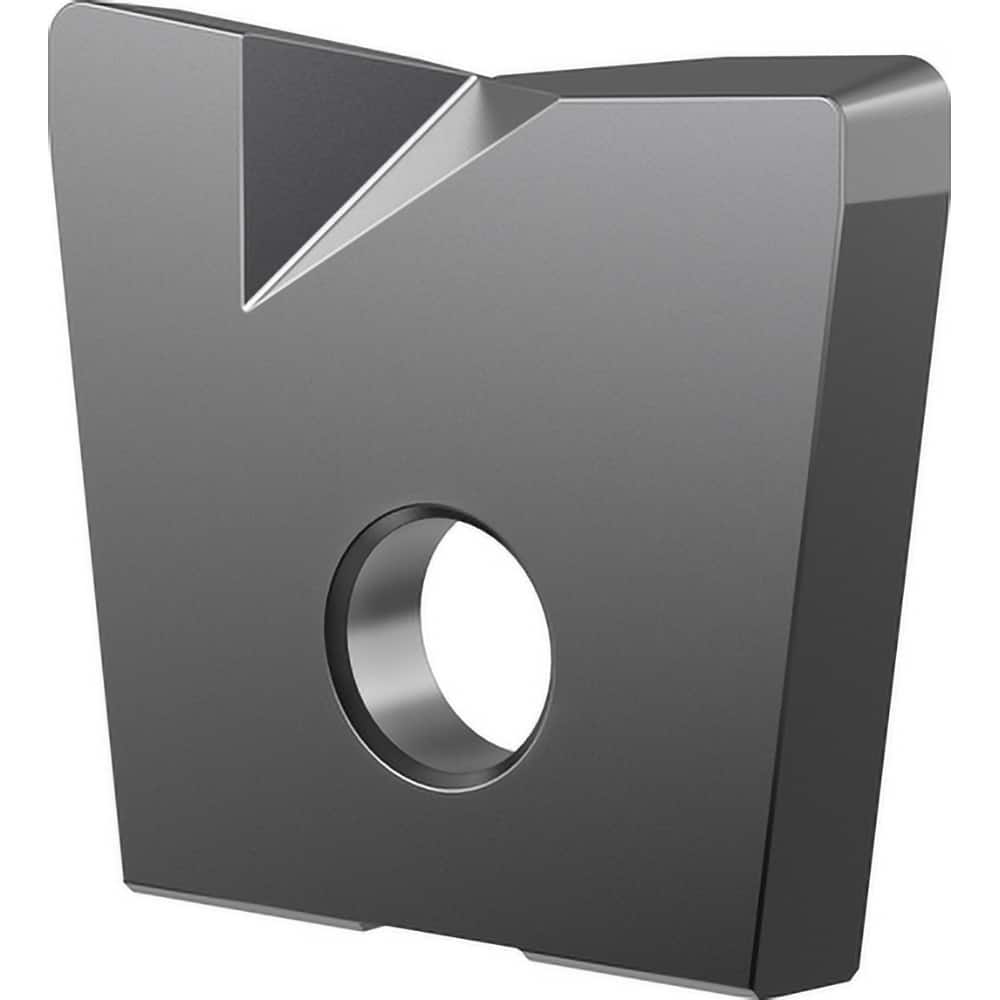

Milling Insert: KDMT2010ERHC, KCPK10, Cast Iron & Steel N/A Finish, 0.7874″ OAW
Item #: 13203336
Brand: Kennametal
Model #: 6784166
Product Specifications
| Insert Style | Toroidal |
| Insert Size | KDMT2010 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Corner Radius (Decimal Inch) | 0.0400 |
| Corner Radius (mm) | 1.01 |
| Insert Hand | Right Hand |
| Series | KDMT |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
| Ansi Code | KDMT2010ERHC |
| Iso Code | KDMT2010ERHC |
| Manufacturers Catalog Number | KDMT2010ERHC |
| Chip Breaker | HC |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.7874 |
| Width (Mm - 2 Decimals) | 20.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| Length (Decimal Inch - 4 Decimals) | 0.7087 |
