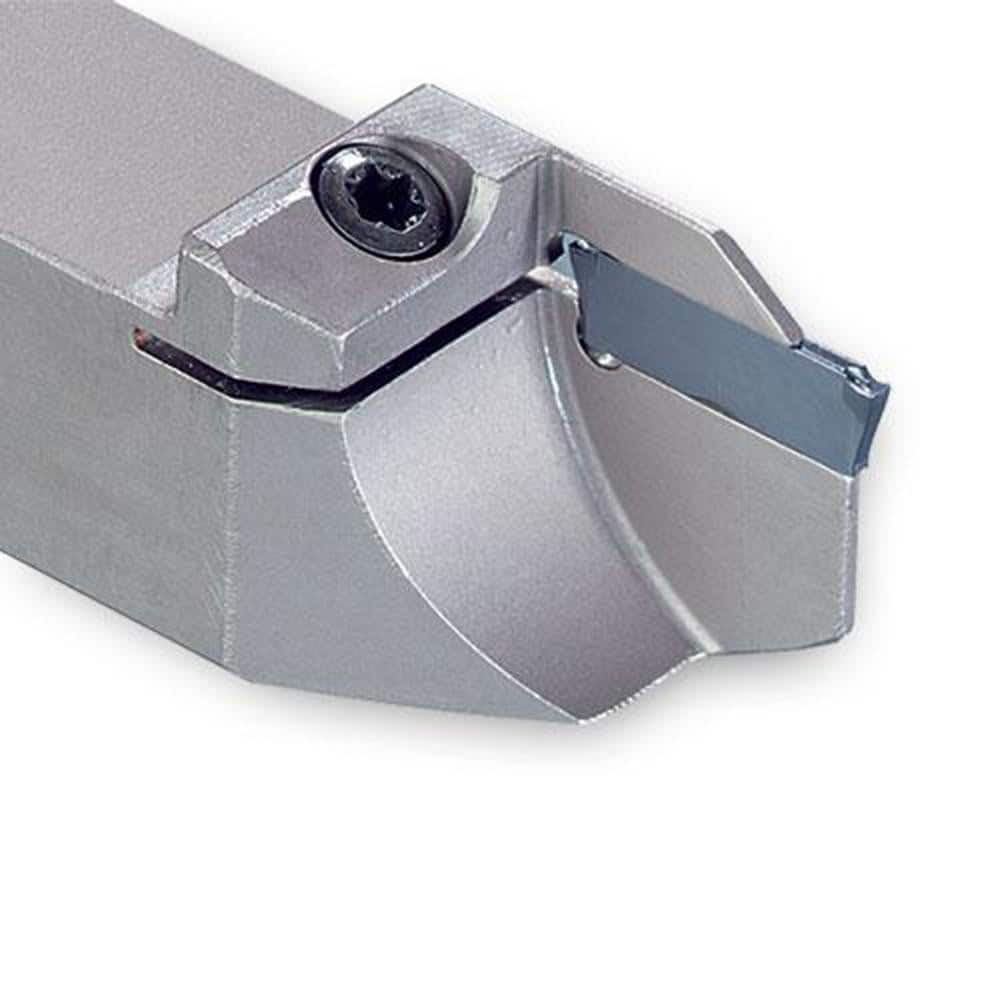

Indexable Grooving Toolholder: TTER9.5-20-1.4SH, 0.0400″ Max Groove Width 0.3950″ Max Depth, Uses TDJ 1 Inserts, 0.3750″ Shank Height, 3/8″ Shank Width, No
Item #: 13578018
Brand: Ingersoll Cutting Tools
Model #: 6163649
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 1 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Minimum Groove Width (Decimal Inch) | 0.0550 |
| Toolholder Style | TTER |
| Maximum Groove Width (Decimal Inch) | 0.0400 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDJ 1 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | TTER/L-SH |
| Shank Length (Decimal Inch) | 4.2900 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7900 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Length (Decimal Inch) | 0.7100 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
