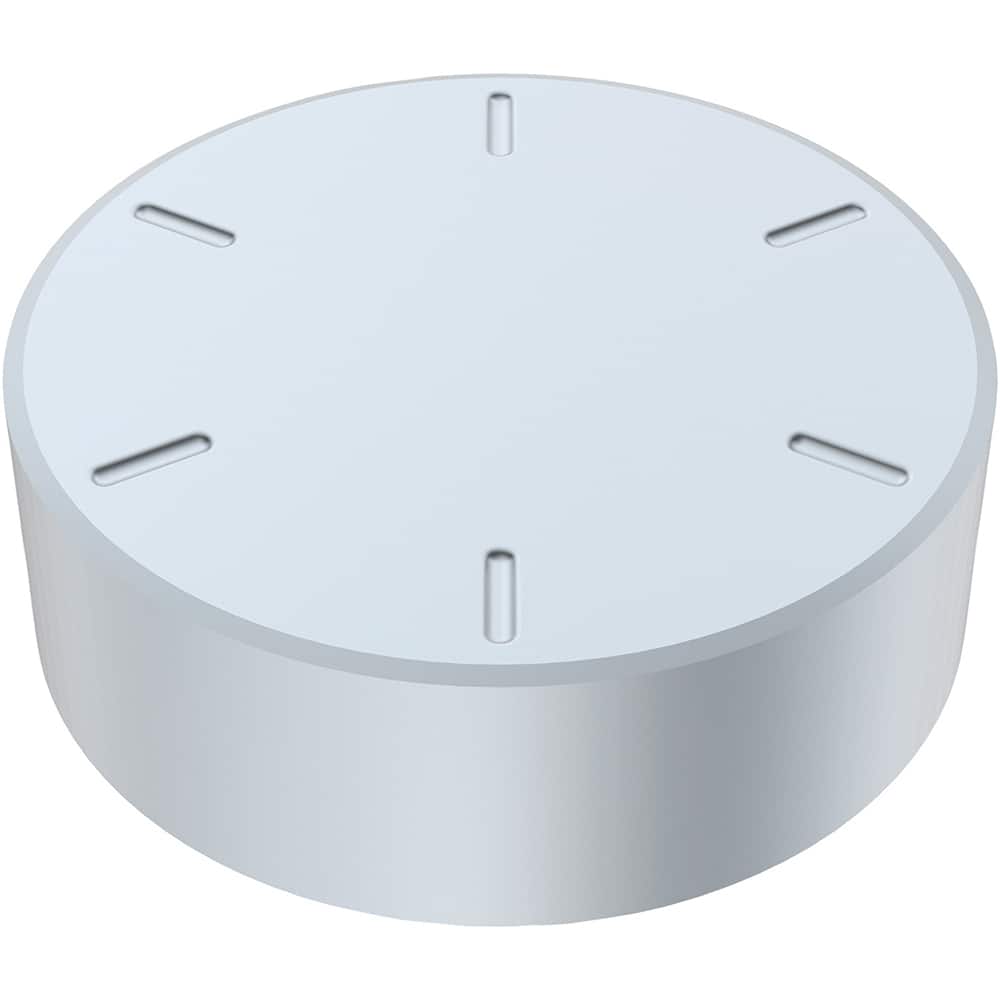

RNMN22S-00820 CBN Turning Insert Neutral, 1/4″ Long, 1/4″ Inscribed Circle, 1/8″ Corner Radius, Round
Item #: 14378194
Brand: Seco
Model #: 10008730
Product Specifications
| Insert Style | RNMN |
| Insert Shape Code | R |
| Insert Size Code | 22 |
| Insert Shape | Round |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CK2065 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Inch) | 1/4 |
| Insert Length (Decimal Inch) | 0.2500 |
| Iso Code | RNMN060300S-02020 |
| Manufacturers Catalog Number | RNMN22S-00820 |
| Cutting Direction | Neutral |
| Chip Breaker | N |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning |
