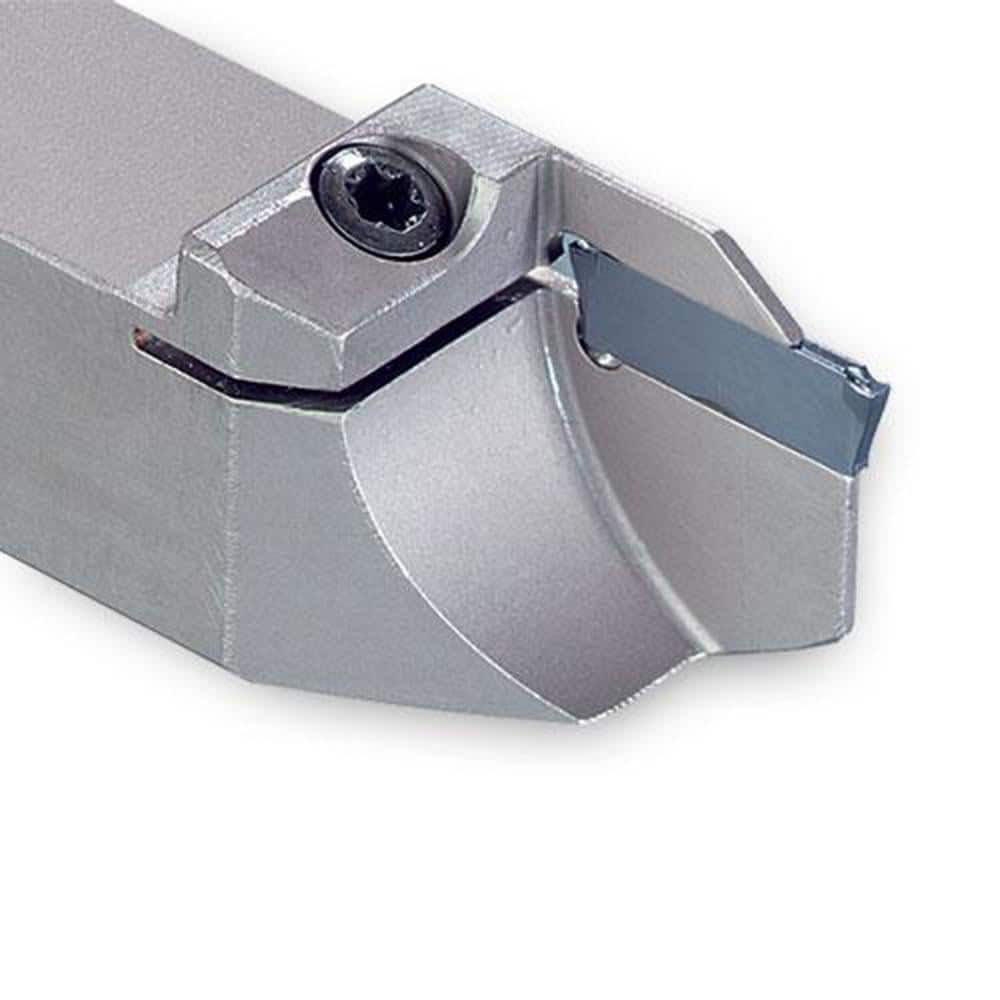

Indexable Grooving Toolholder: TTEL9.5-20-2SH, 0.0690″ Max Groove Width 0.3950″ Max Depth, Uses TD 2 & TS 2 Inserts, 0.3750″ Shank Height, 3/8″ Shank Width, No
Item #: 18293761
Brand: Ingersoll Cutting Tools
Model #: 6163650
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 2 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.0690 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 2; TS 2 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | TTER/L-SH |
| Shank Length (Decimal Inch) | 4.2500 |
| Shank Length (Inch) | 4-1/4 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7900 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Length (Decimal Inch) | 0.7500 |
| Head Length (Inch) | 3/4 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
