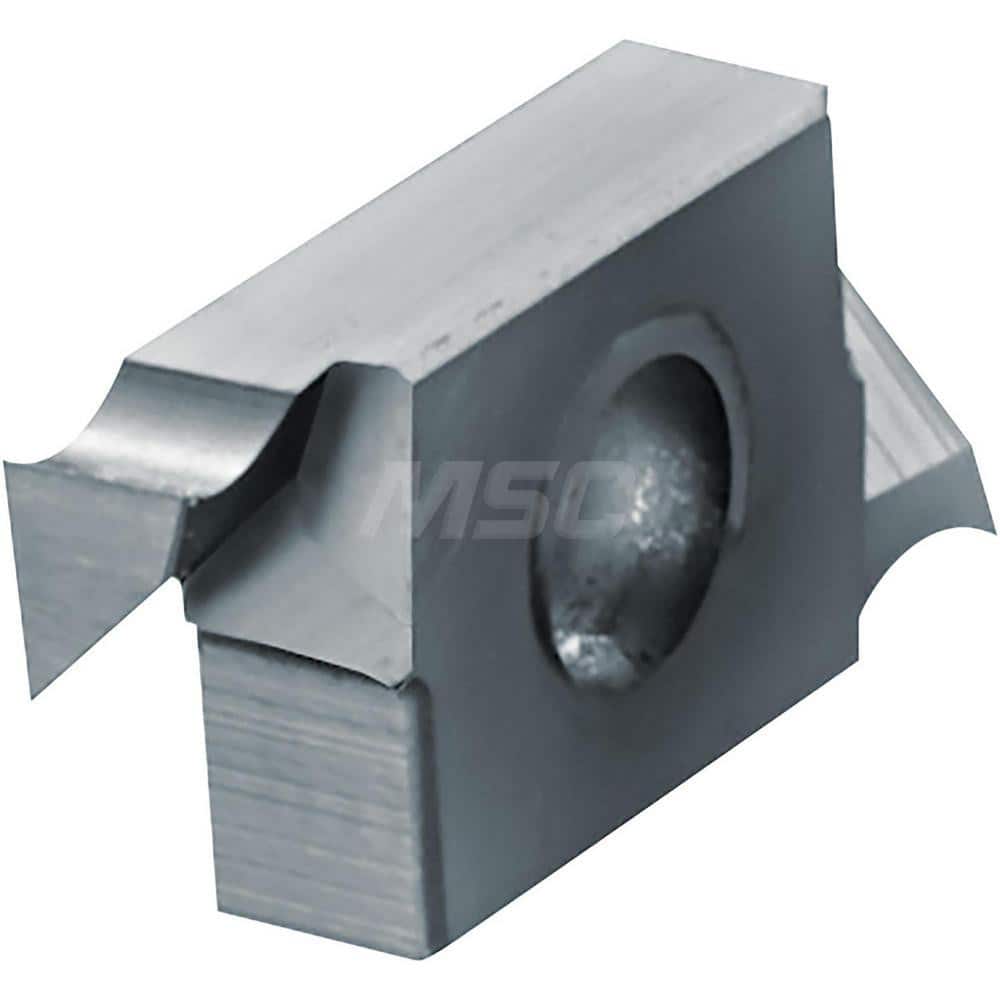

Grooving Insert: TWFG125 KW10, Solid Carbide Co & WC Finish, Right Hand, 1.25 mm Cutting Width, 2.2 mm Max Depth, Series TWFG
Item #: 18310755
Brand: Kyocera
Model #: TWE17312
Product Specifications
| Insert Style | TWFG |
| Insert Size | 125 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 1.25 |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 6.40 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 95 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | TWFG |
| Iso Code | TWFGTR125 |
| Manufacturers Catalog Number | TWFGTR125KW10 |
| Inscribed Circle (mm) | 2.38 |
| Full Radius | No |
| Overall Width | 2.38 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 2 |
