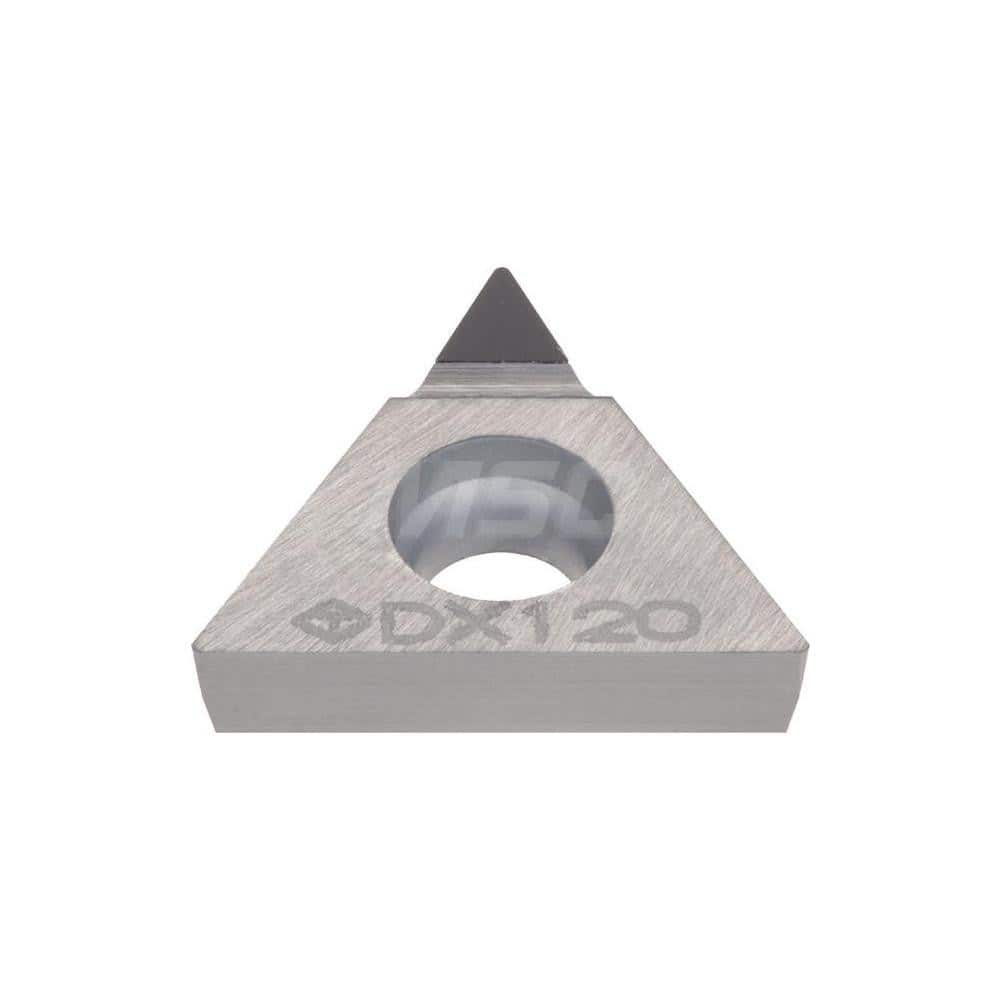

Turning Insert: TCMT631DIA DX120, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TCMT
Item #: 20870887
Brand: Tungaloy
Model #: 6822164
Product Specifications
| Insert Style | TCMT |
| Insert Size Code | 631 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | DX120 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Decimal Inch) | 0.1870 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | TCMT631DIADX120 |
| Iso Code | TCMT631-DIA DX120 |
| Chip Breaker | BR-DIA |
| Coating/Finish | Uncoated |
