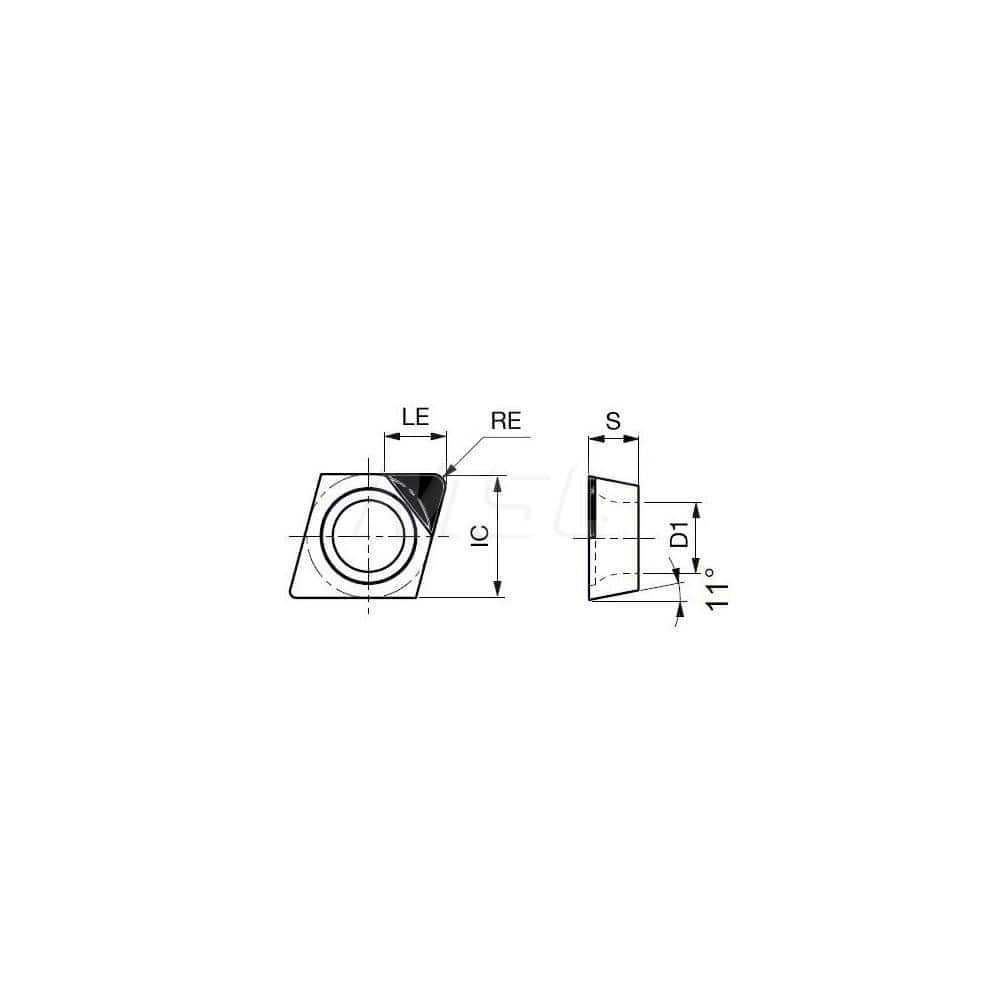

Turning Insert: EPGW520.5DIA DX140, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0080″ Corner Radius, 75.0 ° N/A Diamond, Series EPGW
Item #: 20873352
Brand: Tungaloy
Model #: 6821478
Product Specifications
| Insert Style | EPGW |
| Insert Size Code | 520.5 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | DX140 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | EPGW520.5DIADX140 |
| Iso Code | EPGW040102-DIA DX140 |
| Chip Breaker | FT-DIA |
| Coating/Finish | Uncoated |
