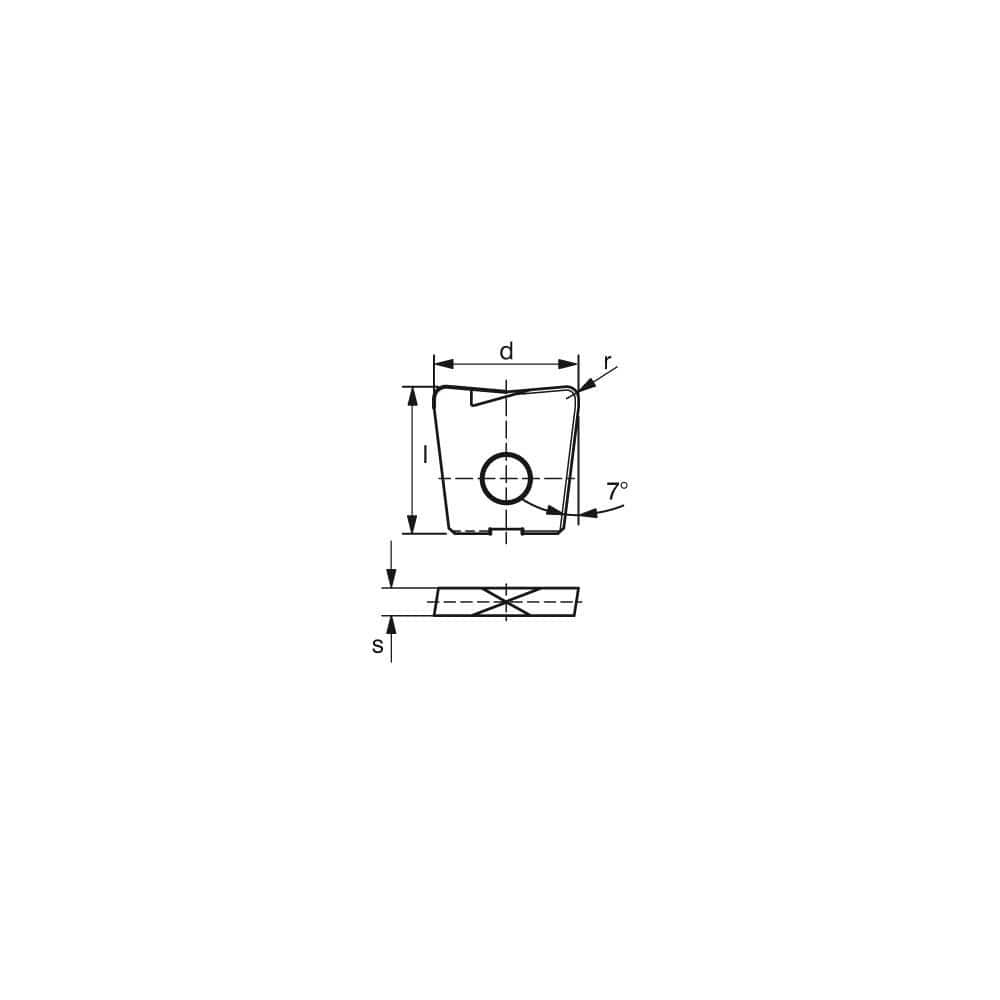

Milling Insert: XOHX 254050-MR2 CTPP211, CTPP211, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26221622
Brand: Ceratizit
Model #: 5616776900
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 2540 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPP211 |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Series | XOHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.9252 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; H; K; M; N |
| Iso Code | XOHX 254050-MR2 CTPP211 |
| Chip Breaker | MR2 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
