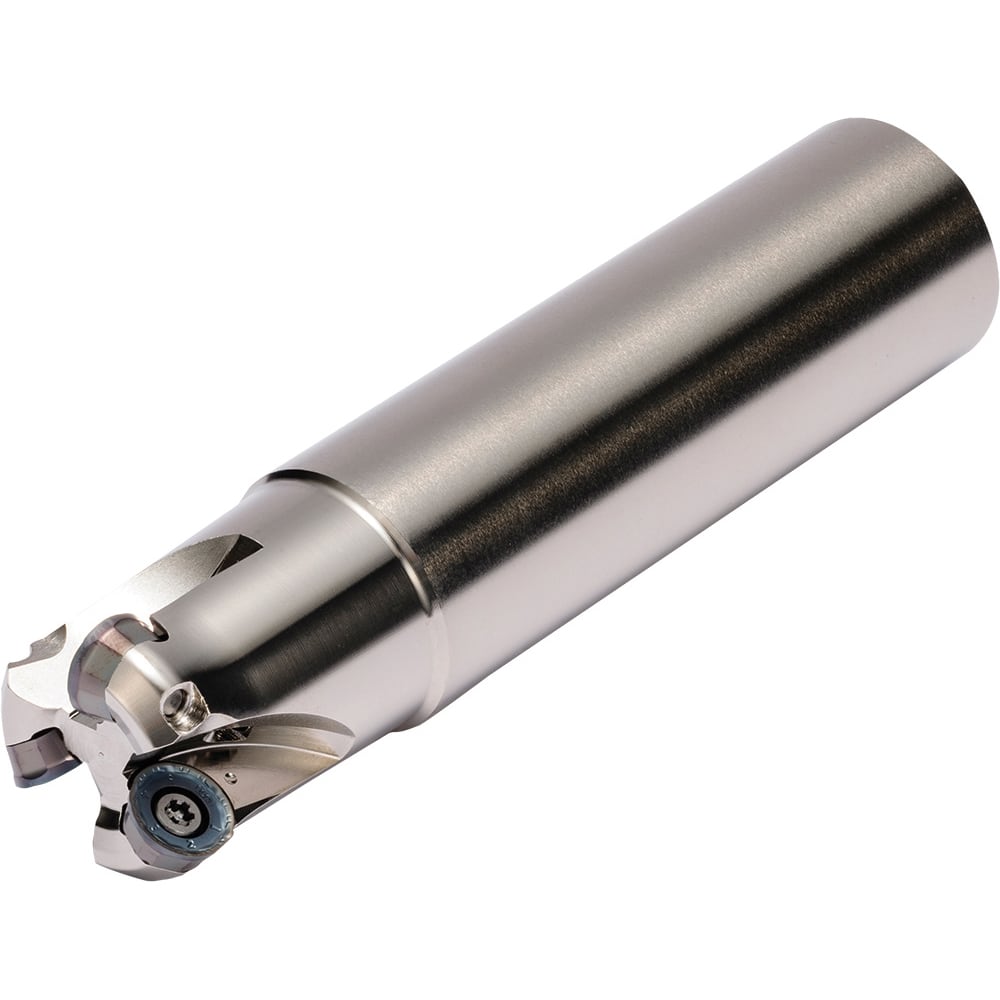

Kyocera - Indexable Copy End Mills; Cutting Diameter (Inch): 1 ; Cutting Diameter (Decimal Inch): 1 ; Maximum Depth of Cut (mm): 4.00 ; Shank Type: Straight ; Shank Diameter (Inch): 1 ; Shank Diameter (Decimal Inch): 1
Item #: 28475150
Brand: Kyocera
Model #: 8608698
Product Specifications
Indexable Copy End Mills; Cutting Diameter (Inch): 1 ; Cutting Diameter (Decimal Inch): 1 ; Maximum Depth of Cut (mm): 4.00 ; Shank Type: Straight ; Shank Diameter (Inch): 1 ; Shank Diameter (Decimal Inch): 1
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1 |
| Maximum Depth of Cut (mm) | 4.00 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Number of Cutter Inserts | 4 |
| Insert Style | RDMT; RDGT |
| Toolholder Style | MRX |
| Series | MRX |
| Overall Length (mm) | 120.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 2.4060 |
| Shank Length (Decimal Inch) | 2.3184 |
| Maximum RPM | 28000 |
| Minimum Cutting Diameter (Decimal Inch) | 1 |
| ISO Number | MRX1000-W100-08-4T |
