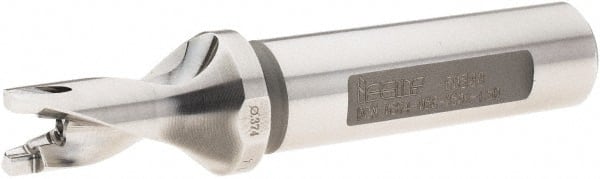

Iscar - 3/8" to 0.39" Diam, 1.5xD, 0.56" Max Depth, 1/2" Shank Diam, 2.92" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 9 Seat Size, 30709760 Toolholder, Series SumoCham
Item #: 30709760
Brand: Iscar
Model #: 3203337
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (Decimal Inch) | 0.3900 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.5600 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 9 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 1.1500 |
| Overall Length (Decimal Inch) | 2.9200 |
| Shank Length (Decimal Inch) | 1.7700 |
