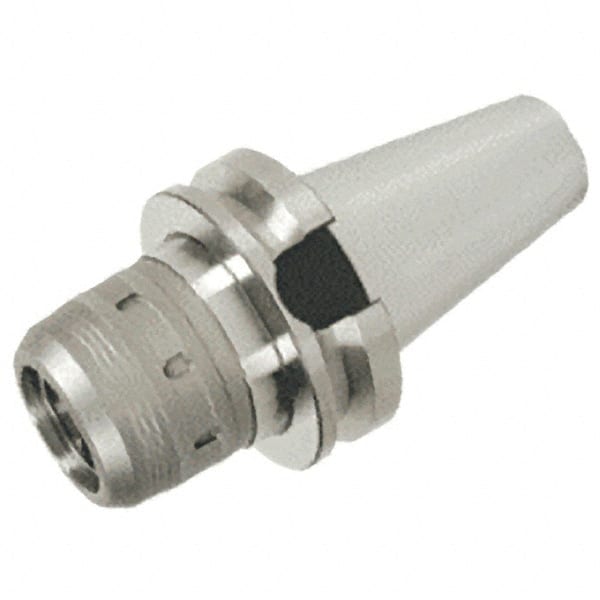

Iscar - BT40 Taper Shank, 20mm Hole Diam x 2" Nose Diam Milling Chuck - 3.3465" Projection, 0.0001" TIR, Through-Spindle & DIN Flange Coolant,
Item #: 30715924
Brand: Iscar
Model #: 4505089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | BT40 |
| Shank Type | Taper Shank |
| Hole Diameter (mm) | 20.00 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 51.00 |
| Nose Diameter (Decimal Inch) | 2.0079 |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3465 |
| Through Coolant | Yes |
| TIR (Decimal Inch) | 0.0001 |
| Coolant Type | Through-Spindle & DIN Flange |
