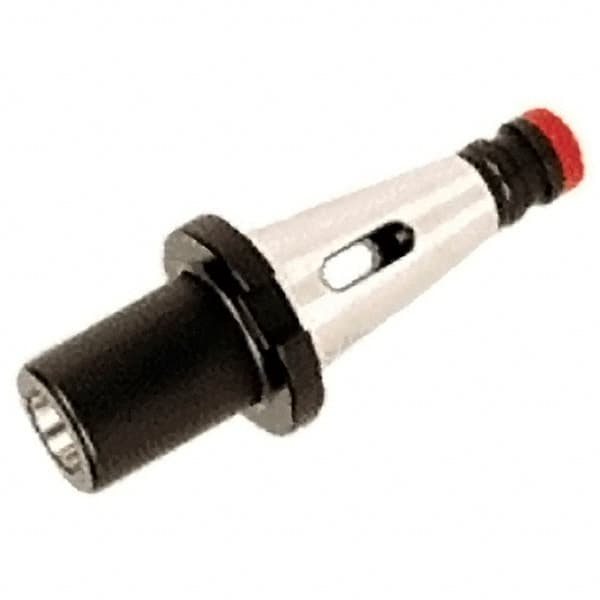

Iscar - DIN2080-40 Outside Taper, 2MT Inside Taper, DIN2080 to Morse Taper Adapter - 50mm Projection, 32mm Nose Diam, 0.0002" TIR
Item #: 30719520
Brand: Iscar
Model #: 4523004
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN2080 to Morse |
| Outside Taper Size | DIN2080-40 |
| Inside Taper Size | 2MT |
| Projection (Decimal Inch) | 1.9685 |
| Projection (mm) | 50.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 32.00 |
| TIR (Decimal Inch) | 0.0002 |
| Retention Knob Thread Size | M16 |
