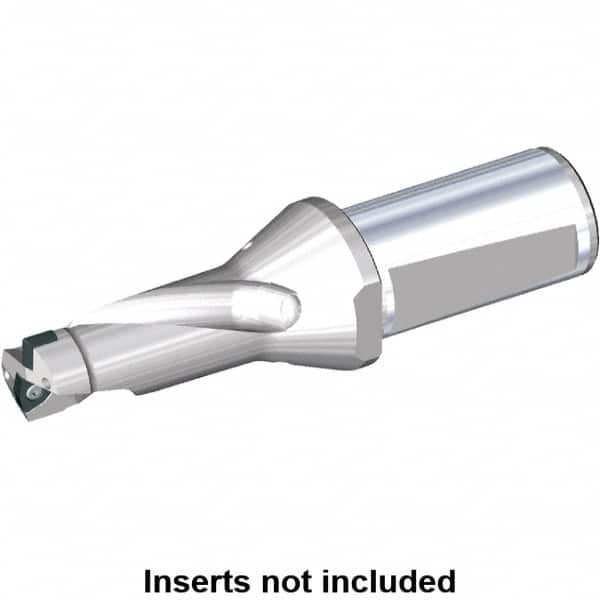

Kennametal - 106mm Max Drill Depth, 2xD, 53mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 31647332
Brand: Kennametal
Model #: 5692352
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 53.00 |
| Maximum Drill Depth (mm) | 106.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 54.00 |
| Overall Length/Projection (mm) | 222.00 |
| Insert Compatibility (Outside or Peripheral) | SPPX15T5.. |
| Insert Compatibility | DFT0905.. |
| Flute Length (mm) | 136.00 |
| Body Length (mm) | 154.00 |
| Shank Length (mm) | 68.00 |
| Series | Drill-Fix |
