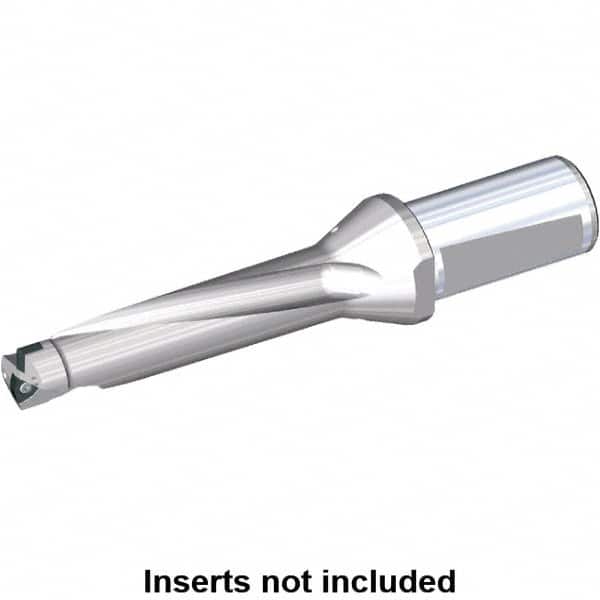

Kennametal - 106mm Max Drill Depth, 4xD, 27.5mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 31648041
Brand: Kennametal
Model #: 5692272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 27.50 |
| Maximum Drill Depth (mm) | 106.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 27.50 |
| Overall Length/Projection (mm) | 198.00 |
| Insert Compatibility (Outside or Peripheral) | SPPX09T3.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 122.00 |
| Body Length (mm) | 140.00 |
| Shank Length (mm) | 58.00 |
| Series | Drill-Fix |
