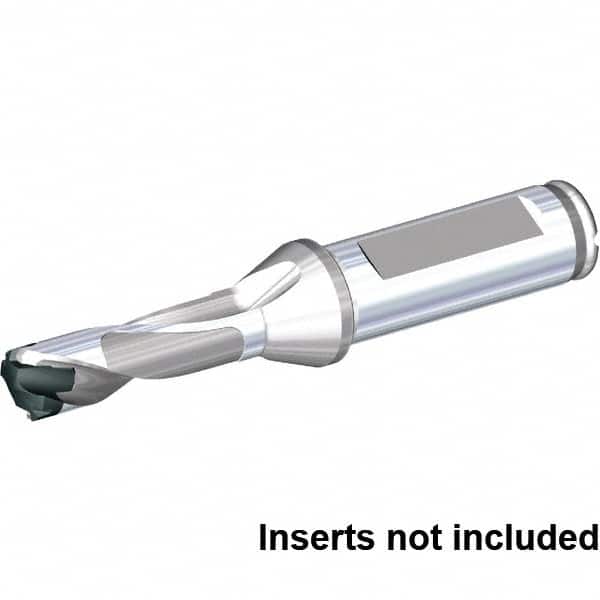

Kennametal - Series KenTIP, Head Connection I, 8xD, 1/2" Shank Diam, Drill Body - 101.6mm Drill Body Length to Flange, KTIP Toolholder, 9.53mm Nose Diam, 146.6mm OAL, 101.6mm Drill Body Length, 96.1mm Flute Length, Through Coolant
Item #: 32102758
Brand: Kennametal
Model #: 5307862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | I |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Drill Body Length to Flange (mm) | 101.60 |
| Drill Body Length to Flange (Decimal Inch) | 4.0000 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 9.53 |
| Nose Diameter (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 146.60 |
| Overall Length (Decimal Inch) | 5.7717 |
| Gage Length (mm) | 101.60 |
| Gage Length (Decimal Inch) | 4.0000 |
| Flute Length (mm) | 96.10 |
| Flute Length (Decimal Inch) | 3.7835 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
