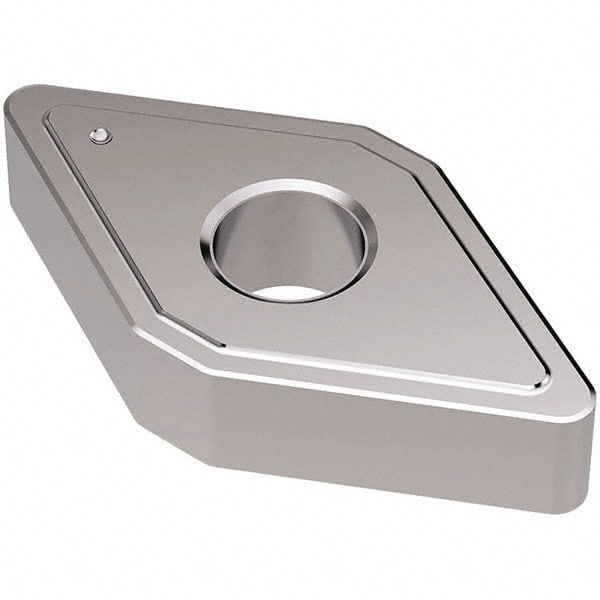

Seco - DNMA443 MR9 Grade TK1501 Carbide Turning Insert - Ti(C/N)/Al2O3 Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 33718628
Brand: Seco
Model #: 46304
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 443 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | TK1501 |
| Coating | Ti(C/N)/Al2O3 |
| Material Grade | C3/C4 |
| Chip Breaker | MR9 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
